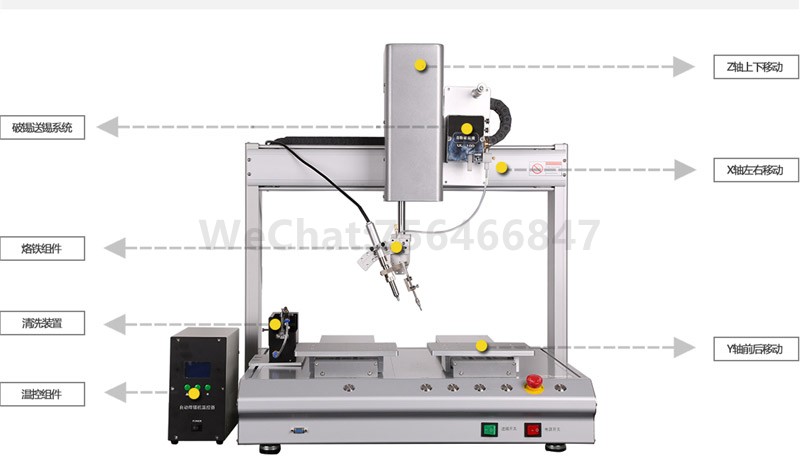

Single soldering iron head double station automatic soldering machine

Single soldering iron head double-station automatic soldering machine, simple programming method, direct handle teaching, can directly input solder joint coordinates, can also teach solder joint position, can reproduce solder joint position coordinates. Adopt multi-axis manipulator and advanced motion control algorithm for linkage, simulate manual tinning action, effectively improve the positioning accuracy of soldering iron head.

Single soldering iron head double-station automatic soldering machine is suitable for mixed circuit boards, heat-sensitive components, SMT back-end processes, PCB boards, HDMI, charger plugs, connectors, DC terminals, ignition switches, sensors, USB, data cables, auto parts, security products, printed circuits, color package LCD screens, computer speakers and motors, etc.

Product advantages

1. Single soldering iron head double-station automatic soldering machine replaces manual specific soldering operations to realize soldering automation. Simple and convenient, high-speed and accurate, precise control of soldering.

2. Easily realize soldering of various trajectories such as spot welding, drag welding, pull welding, and wire welding, with accurate soldering position.

3. High-performance, low-cost linear structure platform with beautiful appearance.

4. All four platforms adopt advanced drive and motion control algorithms, which can effectively improve the positioning accuracy and repeatability of the end of the motion.

5. The whole machine is completely computer-controlled, and the position coordinates of the soldering points can be directly input digitally or taught through the handheld box.

6. The ultra-high-power temperature controller has multiple functions such as adjustable temperature, temperature compensation, password management, and automatic cooling.

7. The high-precision thermocouple is located at the front end of the soldering iron, which quickly senses the slight changes in the temperature at the front end of the soldering iron to ensure the stability of the continuous soldering temperature.

8. The dedicated automatic soldering iron tip has a variety of styles and can quickly solve the difficult soldering process.

9. The program has functions such as position correction, copying, array, and automatic positioning, and the machine operation is simple and fast.

Advantages

1. The single soldering iron tip double-station automatic soldering machine has flexible and diverse soldering methods, with functions such as spot welding and drag welding (pull welding).

2. The mechanical arms of the equipment are all made of aluminum profiles, which are not deformed, rust-free, and run steadily.

3. The equipment can copy the working program from point to point and block to block, shortening the program writing time.

4. The equipment has an automatic cleaning function, which stabilizes the soldering quality and prolongs the service life of the soldering iron tip to a certain extent.

5. The multi-axis linkage manipulator adopts precision stepper motor drive and advanced motion control algorithm to effectively improve the motion positioning accuracy and repeatability.

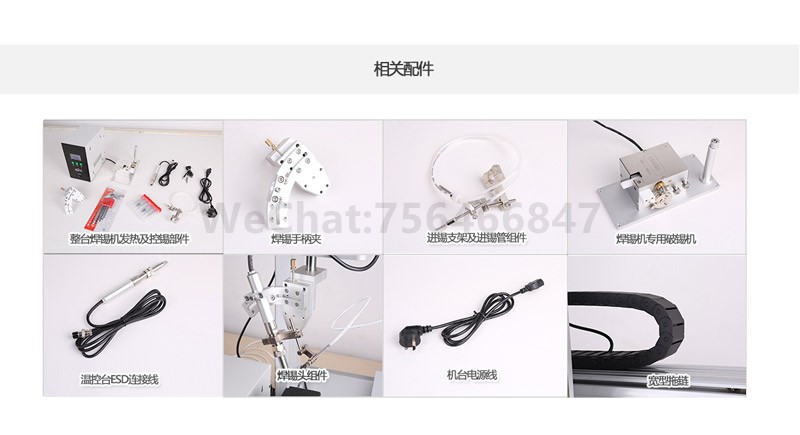

Machine configuration

◆ Four-axis welding double-station work platform

◆ A set of handheld teaching programmer

◆ A set of heating controller

◆ A set of tin breaking controller

◆ A set of soldering pen components

◆ A set of soldering tips

◆ A set of tin discharge components

◆ Smoke purification and filtration system (optional)

◆ Drive mode: X1/Y1Y2/Z1 four-axis micro-stepping motor

◆ Resolution capability: X/Y/Z three-axis 0.01mm:

◆ Control mode: PTP point-to-point, CP continuous path teaching control, can be repeatedly taught.

◆Output/input: two-way, single-way 4-point input, 4-point output

◆Machine size (approximately): W620mm*D600mm*H790mm

◆Machine weight: 80kg

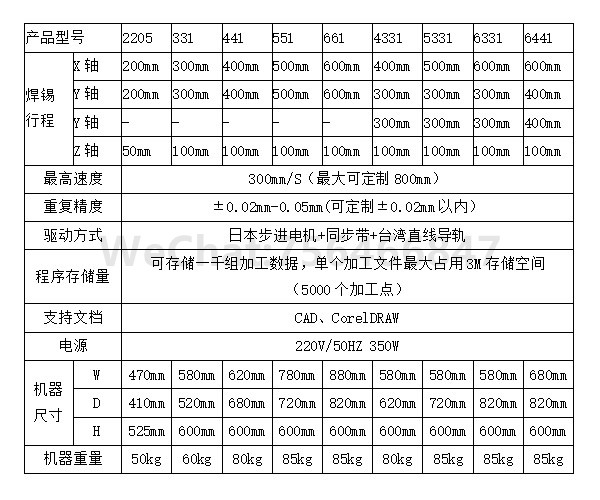

Machine parameters
