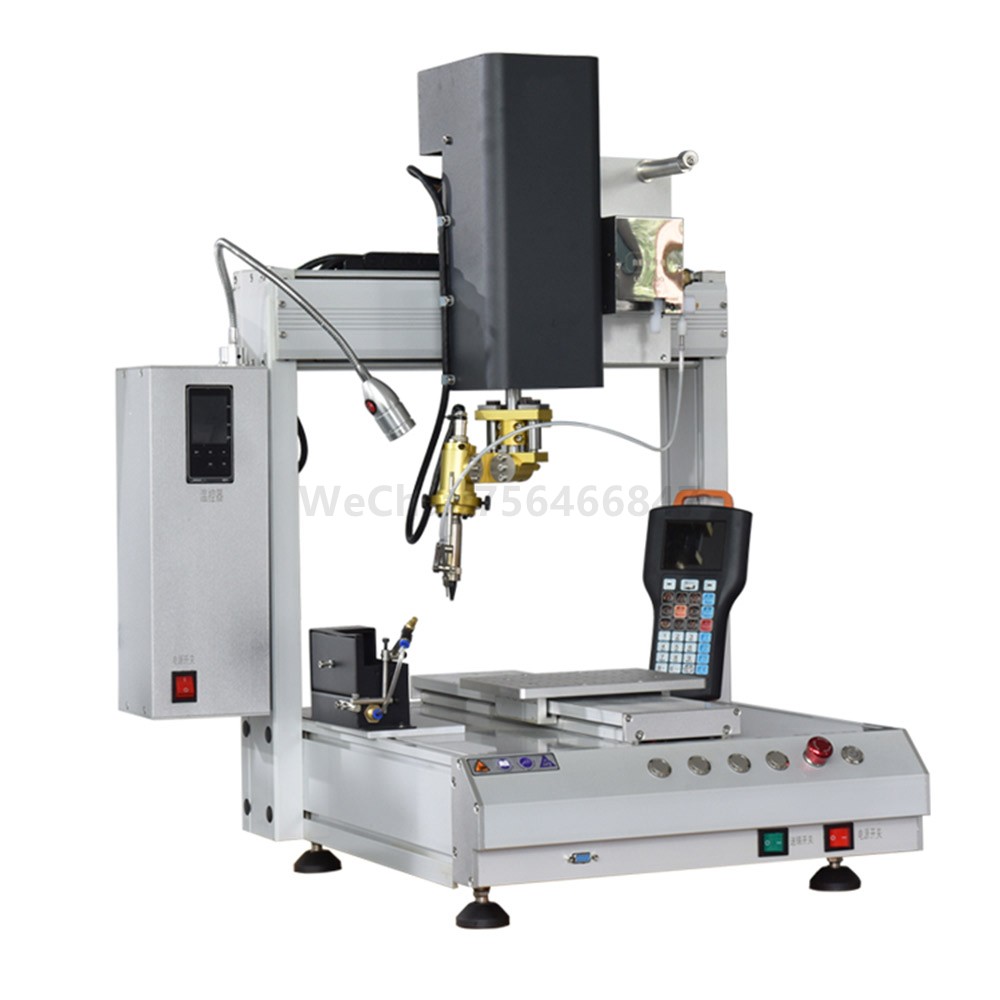

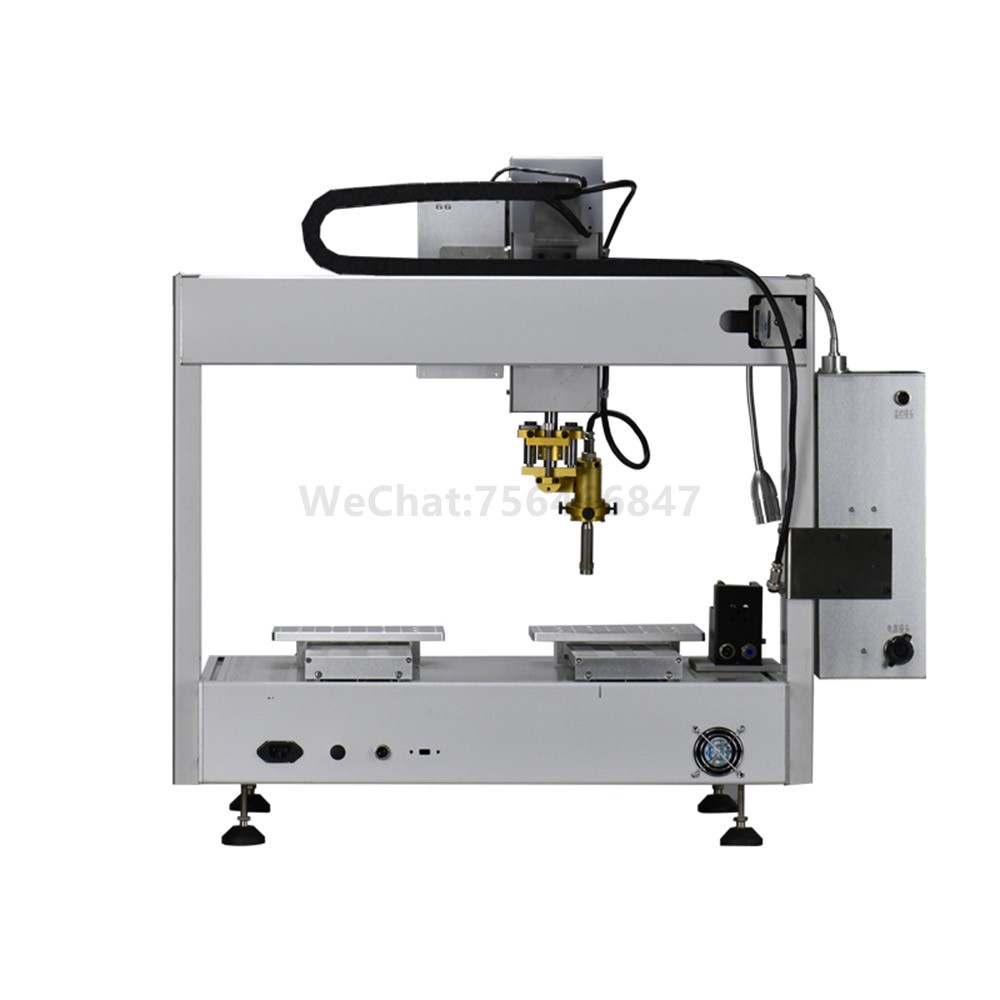

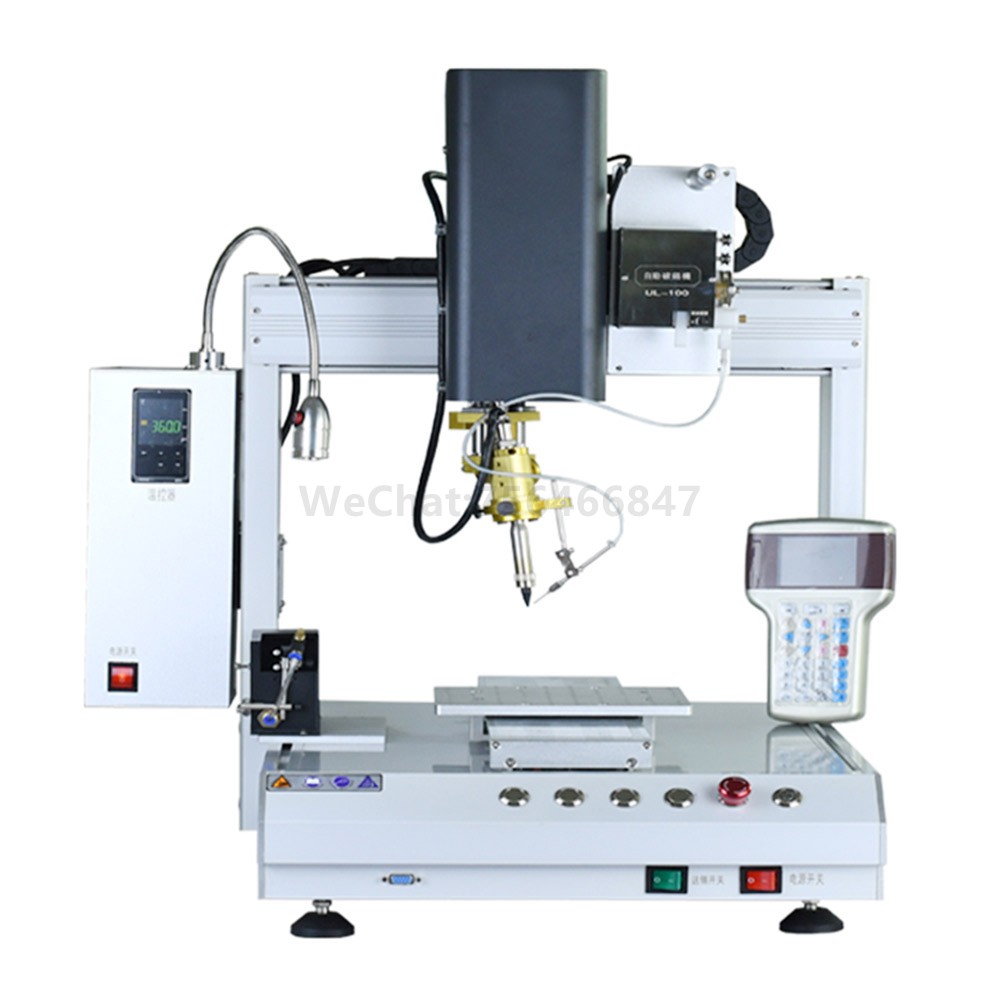

Automatic Desktop R-rotatable Single Station Soldering Machine

Packaging & Shipping
Strong wooden cases suitable for a long distance shipment.
package weight :about 45kg
package size: about 700(L)*700(W)*950(H) mm
Work Area:300(x)*300(y)*100(z)mm R-axis:360°
XYZ Repeatability:±0.03m
Add WeChat 756466847 to learn more

Product Describtion

Product Model		9W-H331R	9W-H441R	9W-H551R	9W-H661R
Operating Range	X-axis	300mm	400mm	500mm	600mm
	Y-axis	300mm	400mm	500mm	600mm
	Z-axis	100mm	100mm	100mm	100mm
	R-axis	360°	360°	360°	360°
Dimensions(mm)	L	516	616	716	816
	W	585	685	716	816
	H	800	800	800	800
Weight		35kg	40kg	50kg	55kg
Maximum Speed	300mm /S(Maximum customizable 800mm)
Repeatability	±0.02mm-0.05MM (Customizable within ±0.02mm)
Control System	independent research and development by 9W
Driving Mode	Precisely Stepping Motor+Timing belt+Taiwan brand linear guide
Program Storage	It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points)
File Storage Space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Support Document	CAD,CorelDRAW
power supply	AC220V 50 – 60HZ 350W(Selectable)
Temperature control range	0-550C°
Iron Tip Cleaning	Air cleaning/Pneumatic
Control Panel	Teach pendant
External Interface	USB + RS232
Soldering Method	Point Soldering/Drag Soldering
Working Temperature/ Humidity	5-40C° /20-90% RH

Brief introduction

Automatic soldering machine is mainly used in electronics manufacturing, mainly for reflow soldering, wave soldering and other production equipment.

This machine is suitable for difficult process and solder processing. It is especially suitable for welding of mixed circuit boards, heat sensitive components and sensitive devices in SMT back-end process. It is widely used in PCB soldering wire, charger plug soldering and connector welding, DC terminal tinning, LED light strip connection and other fields. Automatic soldering robots replace manual welding to improve work efficiency and improve welding quality.

Features:

1, Flexible and diverse soldering methods, with spot welding, drag welding (pull welding) and other functions.

2. The mechanical arms of the equipment are all aluminum profiles, which are not deformed, rusted and stable.

3, Device writing work program can be point-to-point, block-to-block copy, shorten the programming time.

4, The device has an automatic cleaning function, to a certain extent stabilize the quality of solder processing and extend the life of the soldering iron tip.

5. Multi-axis linkage manipulators, all adopt precision stepping motor drive and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

6.This machine is double head and single working place,we accept the double head and double working place and so on.

Product Application

Applications: Suitable for automotive electronics, digital, electronic, electro-acoustic, LCD, circuit board and other production industries, connectors, RJ / network transformers, cable, FPCB soldering, COF soldering, computer motherboards, CABLE, speakers and motors Wait for high quality welding.

The automatic soldering machine is mainly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering. It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB welding wire, charger plug welding, connector soldering, DC terminal tinning, LED light strip connection and other fields. Automatic soldering robots replace manual welding to improve work efficiency and improve welding quality.
