Máy ép keo

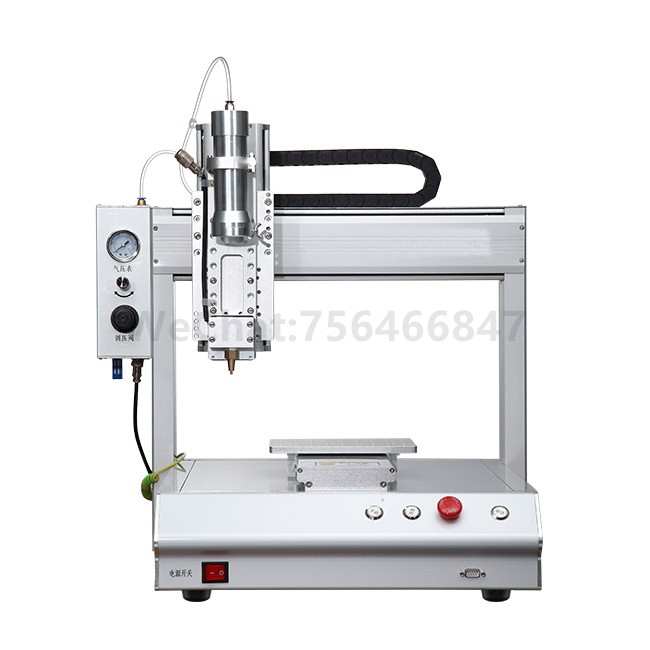

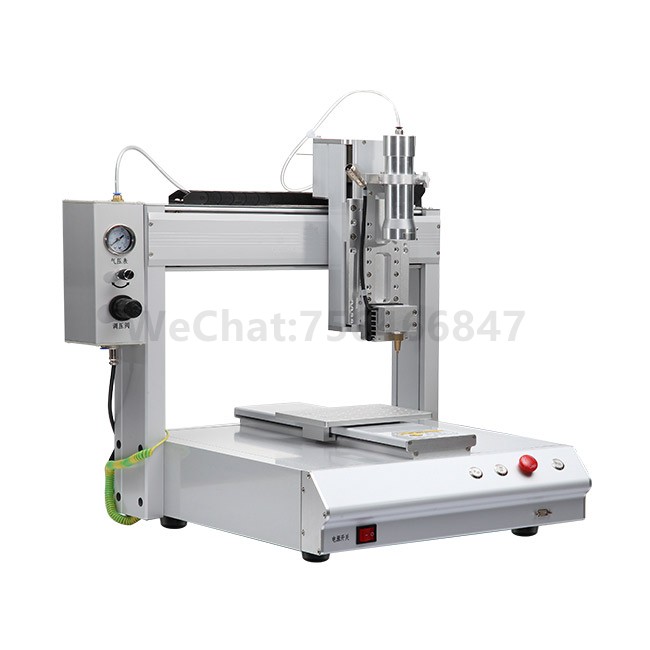

Máy pha chế keo tự động 3 trục để bàn với độ chính xác cao

Work Area:300(x)*300(y)*100(z)mm
XYZ Repeatability:±0.03mm
Packaging & Delivery
Strong wooden cases suitable for a long distance shipment.
package weight :about 45kg
package size: about 700(L)*700(W)*800(H) mm
Thêm wechat 756466847 để hiểu thêm

Product Describtion

Parameter:

Product model		9W-D221	9W-D331	9W-D441	9W-D551	9W-D661
Operating Range	X-axis	200mm	300mm	400mm	500mm	600mm
	Y-axis	200mm	300mm	400mm	500mm	600mm
	Z -axis	100mm	100mm	100mm	100mm	100mm
Size(mm)	L	416	516	616	716	816
	W	485	585	685	785	885
	H	645	645	645	645	645
Weight		30kg	35kg	40kg	50kg	55kg
Max Speed	300mm /S(Maximum customizable 800mm)
Repeated Precision	±0.02mm-0.05MM (Customizable within ±0.02mm)
Control System	independent research and development by 9W
Driver	Precisely Stepping Motor+Timing belt+Taiwan brand linear guide(or Servo motor/ball screw+linear guide rail)
Data Memory	It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points)
File Storage Space	Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Support Document	CAD,CorelDRAW
Power Supply	AC220V 50-60HZ 350W(selectable)

Product feature:

1.It has the functions of drawing points, lines, arcs, circles, irregular curves and continuous tween input programs, and can be used for three-dimensional dispensing.
2.any point, line, surface, arc and other irregular curve continuous dispensing function.
3.high-speed, low noise speed DC brushless motor makes dispensing better.
4.the static eliminator can eliminate static electricity within ±100V.
5.automatic compensation function of dispensing strength, making operation more convenient.
6.XY area array, translation rotation operation function, anti-use tray, suitable for different work positioning.
7.Support three-axis spatial linear interpolation, three-axis spatial circular interpolation, and elliptical arc interpolation.
8.support computer graphics import function, can import PLT file, TCF file and G code file.

Suitable Glue

Silicone, EMI conductive adhesive, UV adhesive, AB adhesive, instant adhesive, epoxy resin adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, thermal grease, solder paste, transparent paint, screw fixing Agents, etc. Main use: bonding, filling, coating, sealing, filling, dripping, linear/arc/round coating in product process.

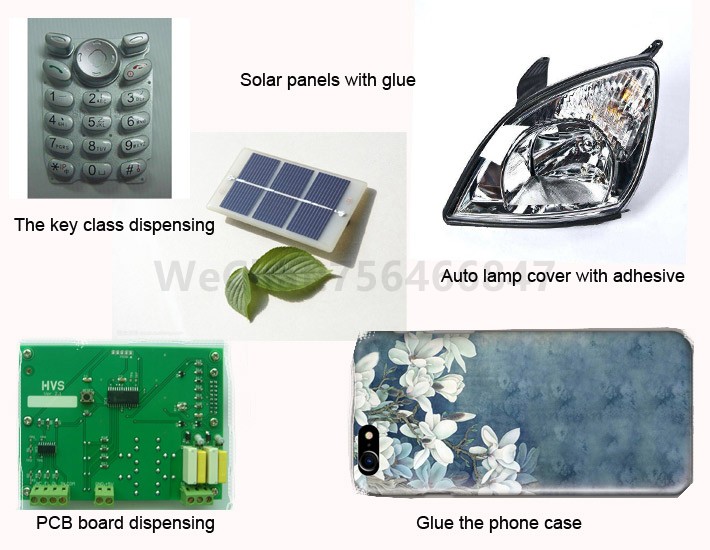

Application

Sensors, relays, power adapters, electronic toys, sounders, electronic components, household appliances, electric vehicle controllers, computer digital products, crafts, mobile phone boards, coil products, button products, battery boxes, speakers Dot glue bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, hardware parts packaging glue, quantitative liquid filling, chip bonding, automotive mechanical parts coating, mechanical seals, etc.

3-AxisDesktop Automatic Glue Dispensing Machine With High Precise
