Máy hàn tần số cao

Loại bàn đạp Máy hàn trần căng PVC tần số cao 5KW

Technique specifications
Model	9W-4KW		9W-5KW	9W-8KW
Power	4KW		5KW	8000W
Voltage	220V/380V 50/60HZ
Frequency	27.12MHZ
Input power	6.5KVA		8.5KVA	15KVA
Rectifier	SILICON DIODE
Oscillation tube	E3130		7T85RB	7T69RB
Max pressure	350KG		400KG	450kg
Electrode gap	160~200MM
Stroke distance	60MM
Upper electrode size	120200mm（200350mm can be customized）
Lower electrode size	350700mm (500800mm can be customized)
Temperature tange	30~200℃ Adjustable
Welding time	0~10S Adjustable
Operaton Mode	Foot operated
Efficiency	3000~4000times/8h
Weight	300KG	330KG		330kg
Size	170011001600

Thêm wechat 756466847 để hiểu thêm

Item: Pedal Type 5KW Double Heads High Frequency PVC Stretched Ceiling Welding Machine

Model No.: 9W-D5KW

Machine Feature:

1. High frequency welding machine also called Radio frequency welding machine

2. High frequency welding machine has a osciallation systerm, with a tube inside.

3. This machine can be customized into 5 KW/8 KW/10 KW /12 KW/15 KW/25 KW/ 35 KW/50 KW, etc.

4. This machine can be customized into different shape for different products welding.

5. This machine has two working stations, two operators working alternately.

6. This is machine is foot pedal control.

7. This machine can work equipped with a air compressor, which gives more stable output.

8. This machine is with spark protection device inside, which protect the mold being damaged.

Technical Datas:

PVC Stretched Ceiling Welding Machine
Model	9W-D4KW	9W-D5KW	9W-D8KW
H.F output	4KW	5KW	8KW
Oscillation frequency	40.68MHZ	27.12MHZ
Power supply	AC 380V
Power input	6.5KVA	8.5KVA	15KVA
Oscillation tube	3062	7T85	7T69
Max pressure(kg)	500
Electrode distance	175mm		210mm
Activity distance	75mm		75mm
Electrode size	350*700mm	350*700mm	500*800mm
Net weight(KG)	320	350	475
Gross weight(KG)	410	440	605
dimension(mm)	LWH=110021001600mm

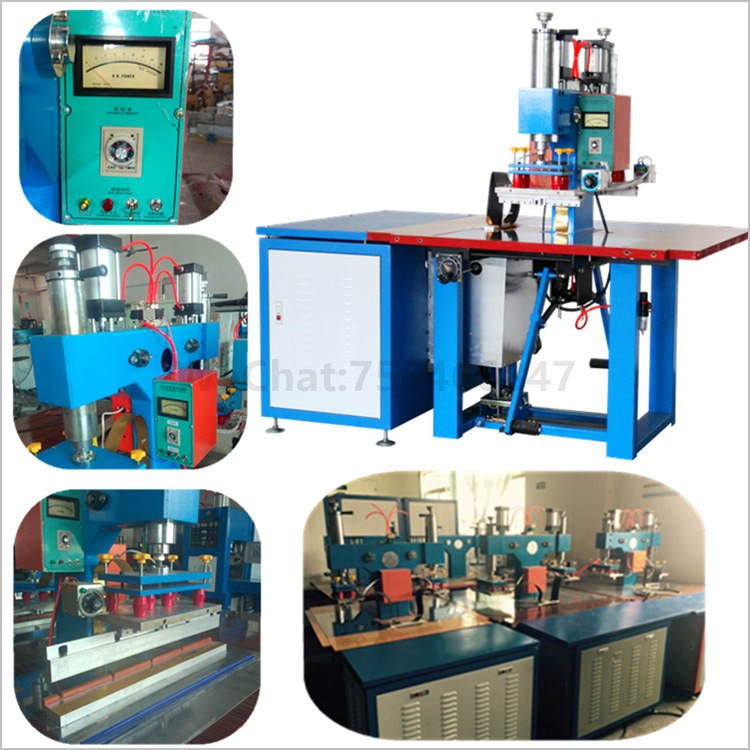

Pedal Type 5KW Double Heads High Frequency PVC Stretched Ceiling Welding Machine

Application Samples

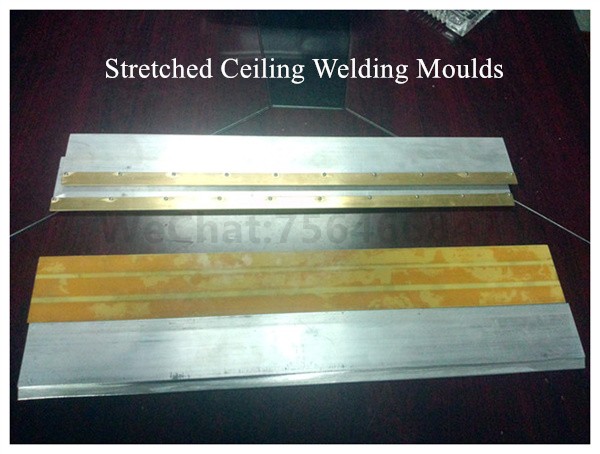

High Frequency PVC Stretched Ceiling Welding Machine Moulds

Our High Frequency Welding Machine have activity in the following industries:

Medical: Including Blood bags, Colostomy bags, DVT bags, Solution bags, EVA bags, Medical Mattresses, produced on HF welding machines, high frequency welding machines, rotary and inline machinery. The materials can be PVC, Medical Grade PVC and Non PVC.

Tarpaulin Awnings and Banners: Including HF travelling head, fixed head and gantry, hot air in-line and fixed head, gluing, sewing and ultrasonic system. Plotters conveyor or fixed table, water jet cutting systems and associated equipment.

Automotive: Including Car Carpets, Sun Visors, Load Floors, Seats, Doors and Tops produced on HF welding, rotary and shuttle machinery

Packaging: Including Form Fill & Seal, Blister Forming, for both food and non food, rotary and inline machinery, for Soft Crease Boxes, clam Shell and Standard Blisters, using thermo-contact and HF welding technology.

Stationery: Including Pockets, Binders, Tax Discs produced on high frequency welding, rotary, inline and shuttle machinery, PVC bath book

Many more...

Questions 01. How Do You Pack the machines

RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)

Questions 02. Is it difficult to install the machine ?

RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;

You just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get install videos, and install instructions from us.

It will be an ABC thing to install machines at your side.

Our Service

1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
