Full-time double Y V7 version dispensing machine control system

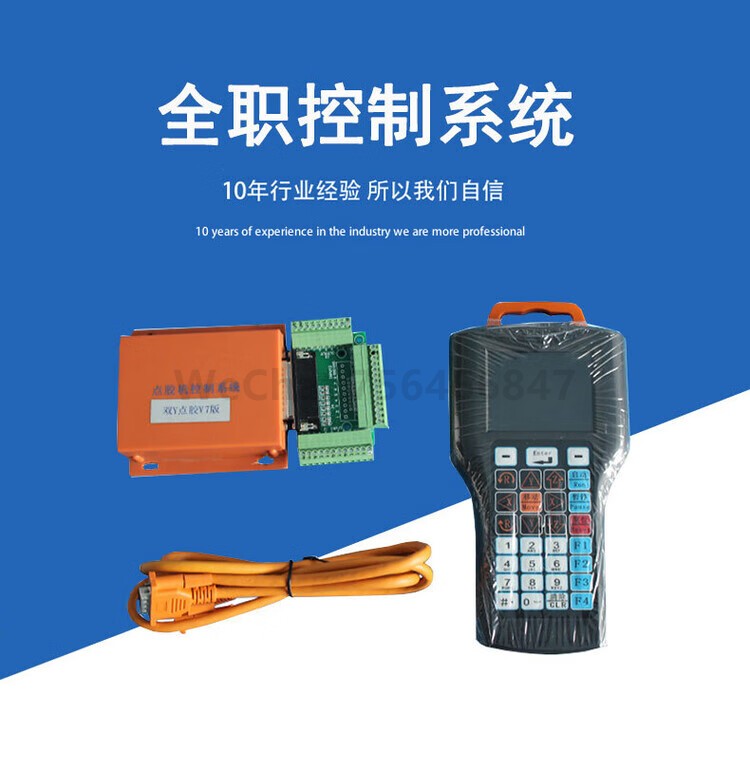

Double Y dispensing machine control system V7 (QZ-NC0904A)

Function introduction:

1. The handheld box adopts 320*240 high-resolution color screen and full Chinese operation interface, which is easy to learn and use.

2. It has graphic elements such as drawing points, straight lines, polylines, three-dimensional arcs (space arcs), circles, runways, rectangles, coating, automatic fillets, irregular three-dimensional spline curves, etc.; rich manual teaching functions and graphic preview functions.

3. It has conditional jump function and double MARK point rotation needle function.

4. It has a jump selection function, which can select multiple non-continuous instructions at the same time.

5. It has an instruction movement function, which can move the edited instructions to the target position.

6. It has a breakpoint execution function, which can start execution from a specified point.

7. It has regional array copy, offset operation, batch editing, single-step operation, I/O input and output and other functions.

8. It has automatic execution, automatic reset, output setting, processing time timer and other functions.

9. It has four different wire drawing process options, which can solve the process problems such as wire drawing.

10. It supports DXF and PLT file import and automatic path optimization function.

11. After the action parameters are edited, the action parameters can be downloaded to the controller through the serial port, and it can be run offline and independently. The action parameters can also be saved to the handheld box for easy call; and the graphics can be copied and saved between devices.

12. The handheld box can store hundreds of processing files, each file can support 8000 instructions, and can be called out when used.

13. The hardware has 4 gun channel control, 4 general outputs, 8 inputs, and 12 high-speed pulse outputs; the control dispensing time accuracy is 1ms.

14. Each action instruction has independent glue opening delay, glue closing delay, gun retraction height, and independent early glue closing function. The flexible batch modification function can improve editing efficiency and solve the problem of glue accumulation.

15. Support batch modification of parameters by type classification.

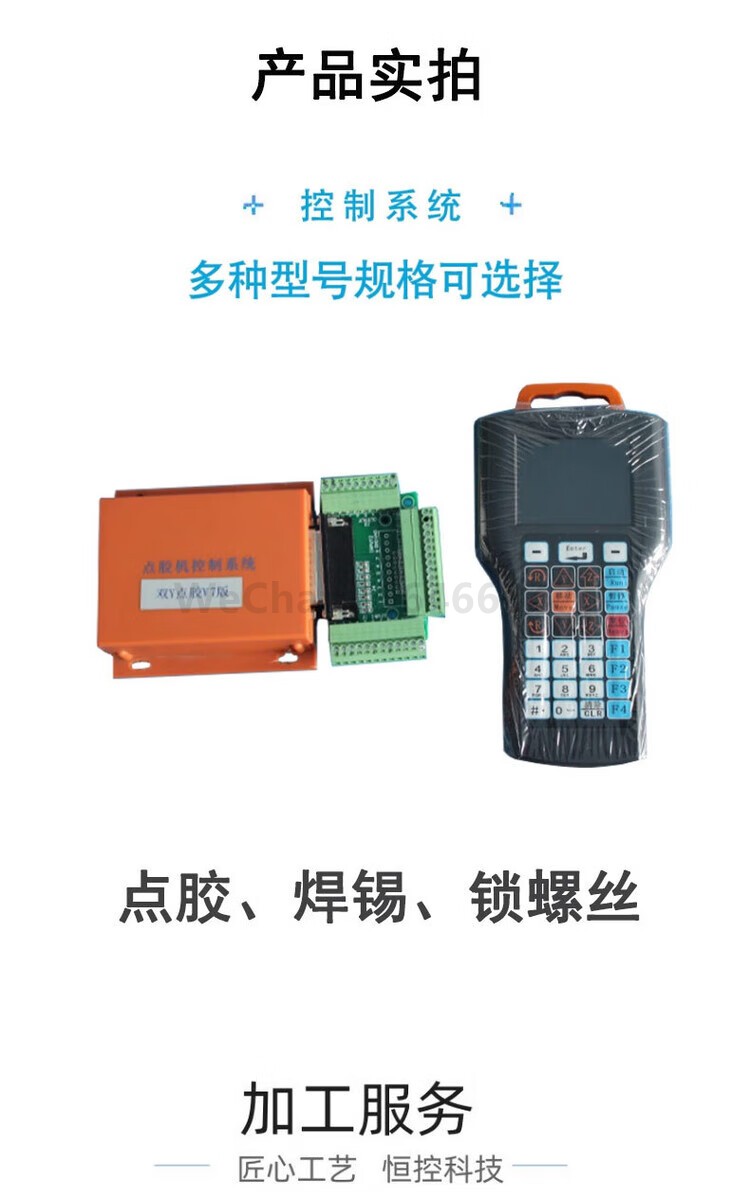

Functional characteristics:

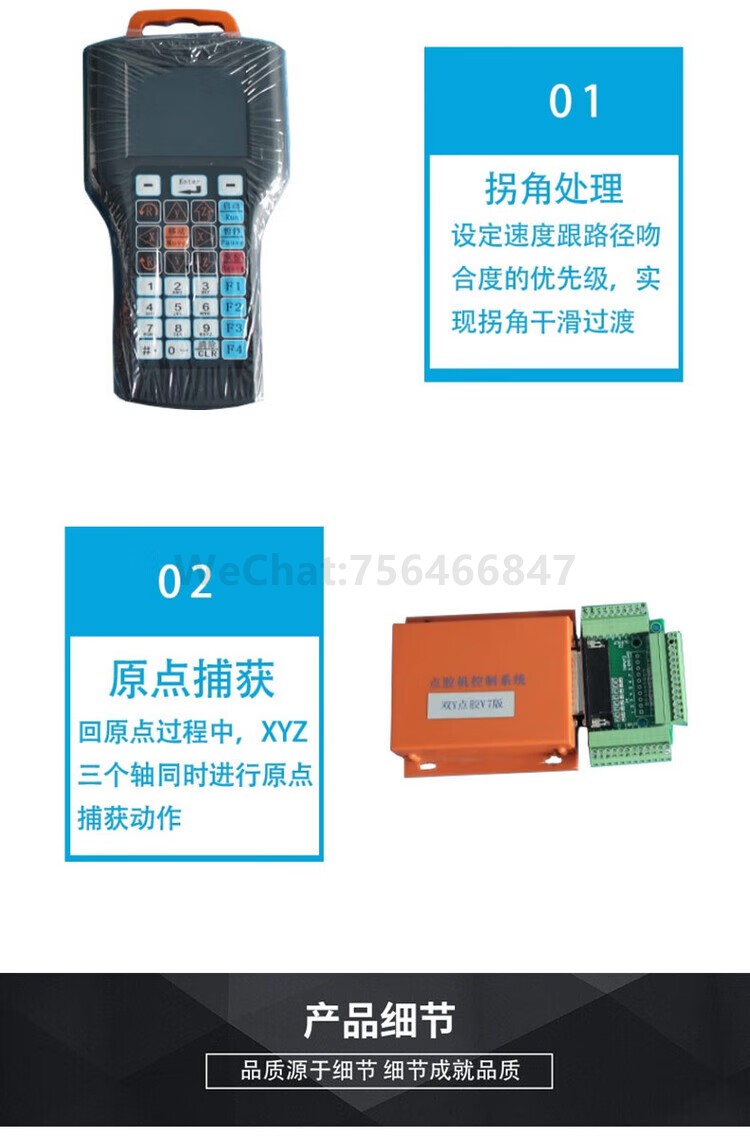

Controller hardware characteristics

Number of motor axes: 4 axes (XY1ZY2)

Pulse frequency: 100K

Number of IO ports: 8 dedicated inputs (XY1ZY2 origin, start/pause, pause, reset/emergency stop button), 4 dedicated glue gun outputs (4 glue gun switch controls, directly drive solenoid valves, drive current 2A). 4 general I/O outputs, 8 general I/O inputs, 12 high-speed "NPN open collector" 5-24VDC outputs, rated current 0.5A.

IO input type: optocoupler isolated input.

Storage capacity: 16M

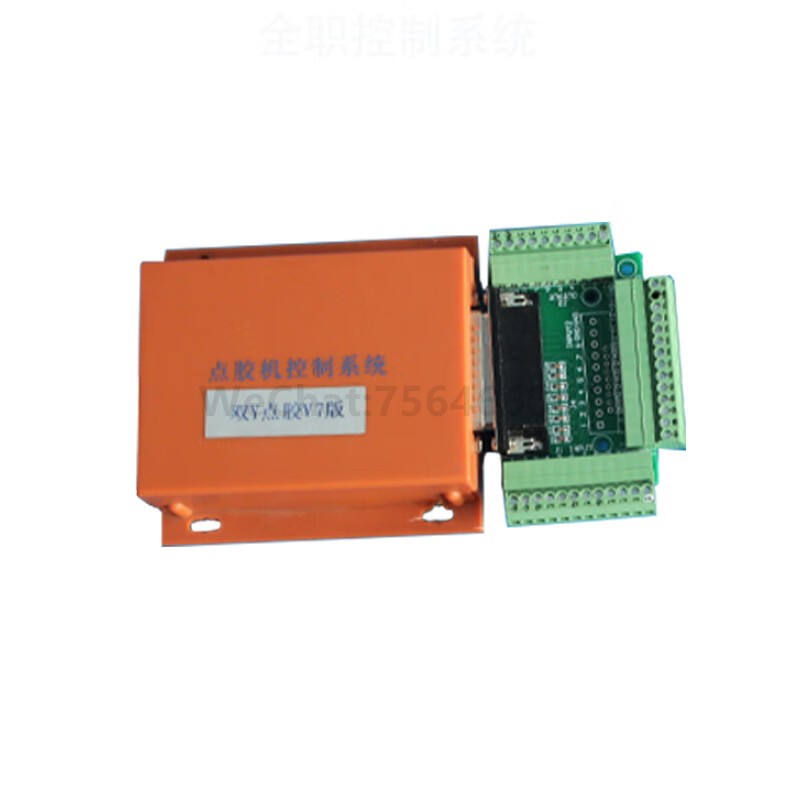

Interface: DB44 interface

Working voltage: 24V DC,

Working temperature: -10-60℃

Storage temperature: -40℃-70℃

Working humidity: 40%-80%

Storage humidity: 0%-95%

Handheld box hardware features:

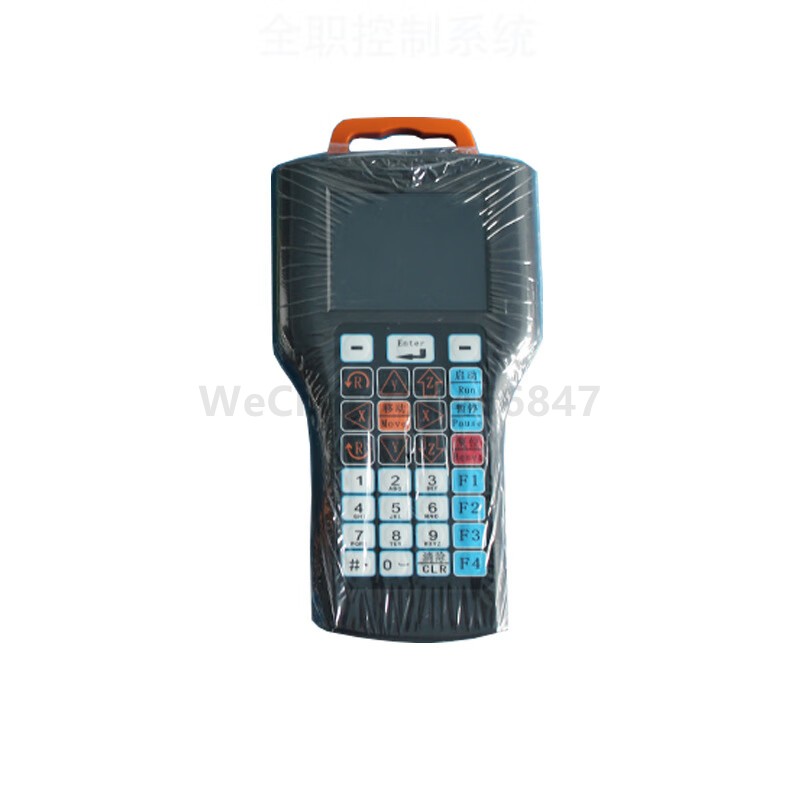

Interface: Equipped with USB interface and serial port, USB port is used to connect to the computer, this function is temporarily reserved. Serial port is used to connect to the handheld box.

Storage method: FLASH chip.

Display configuration: resolution 320*240, 3.2-inch color LCD screen.

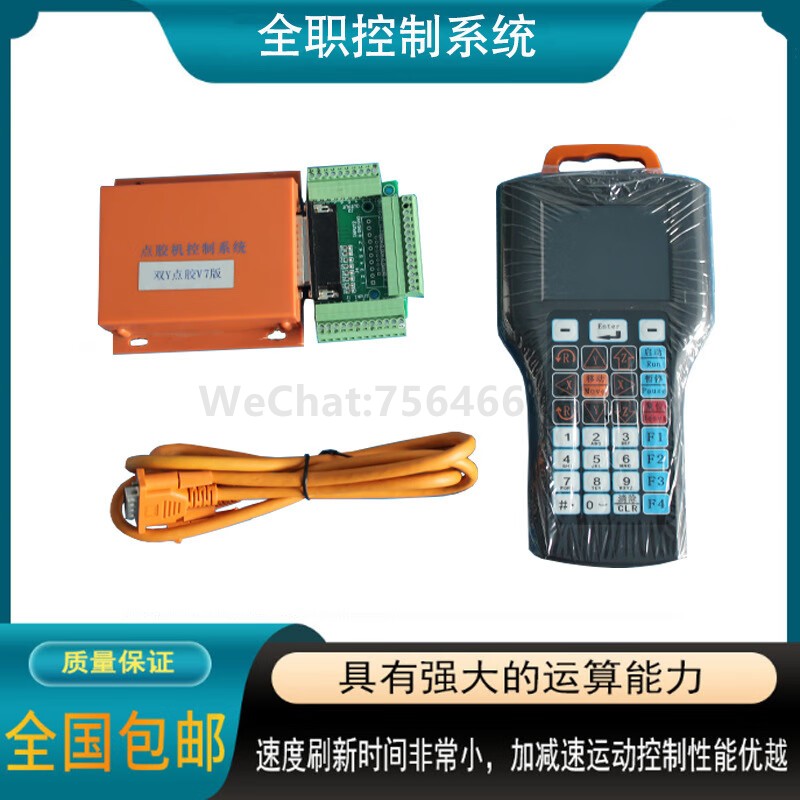

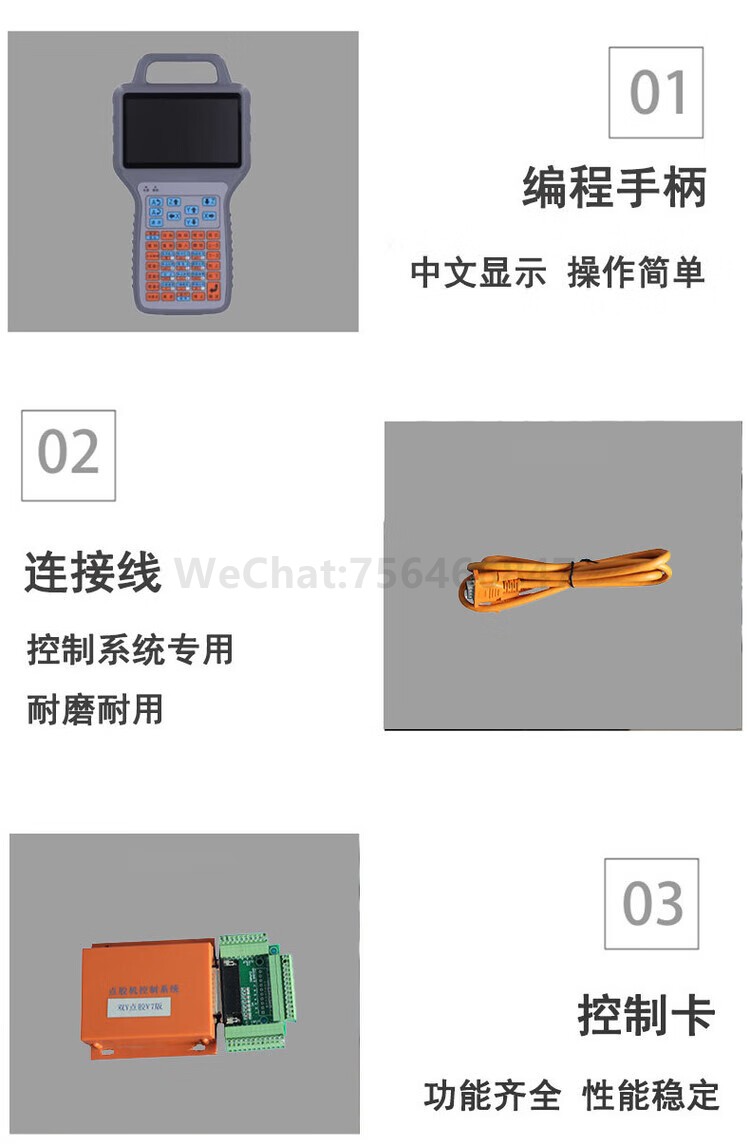

Product list:

Accessory name Type Quantity Introduction

Handheld box Must be equipped with 1 operation teaching box

Controller Must be equipped with 1 motion controller

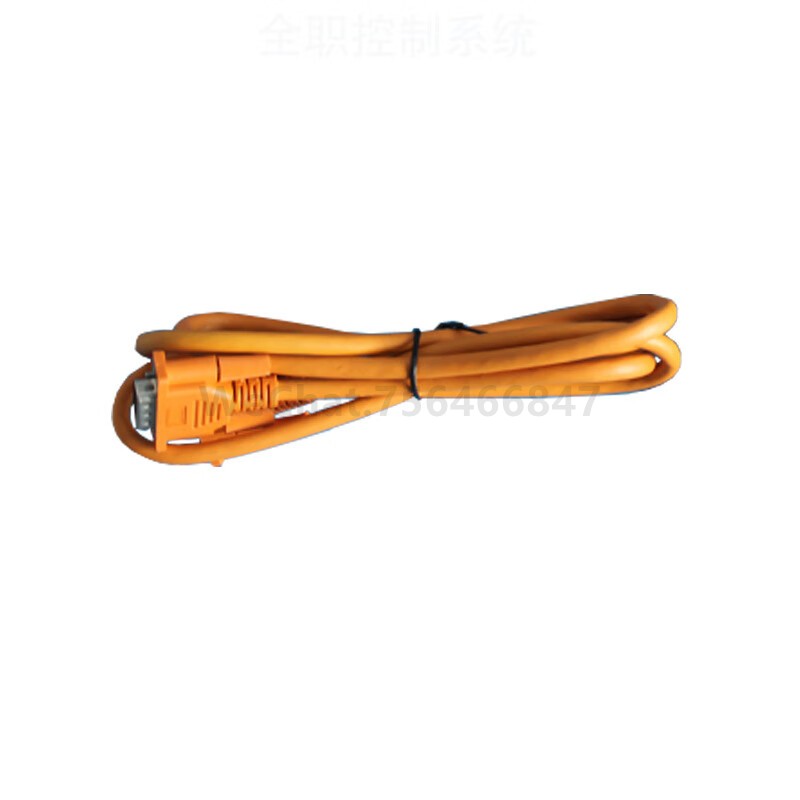

Data cable Must be equipped with 1 connecting cable

Connection board Must be equipped with 1 connection board
