Handheld semi-automatic AB glue dispenser

Auto Glue Dispenser 983AB Solder Paste Liquid Controller Dropper Fluid dispenser
Add WeChat 756466847 to learn more

Product description:

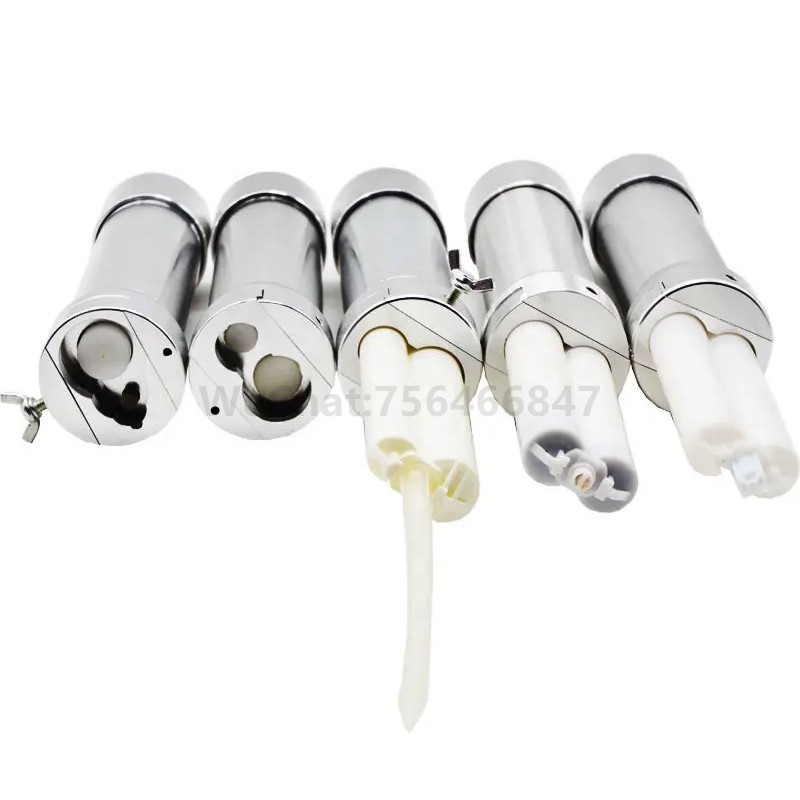

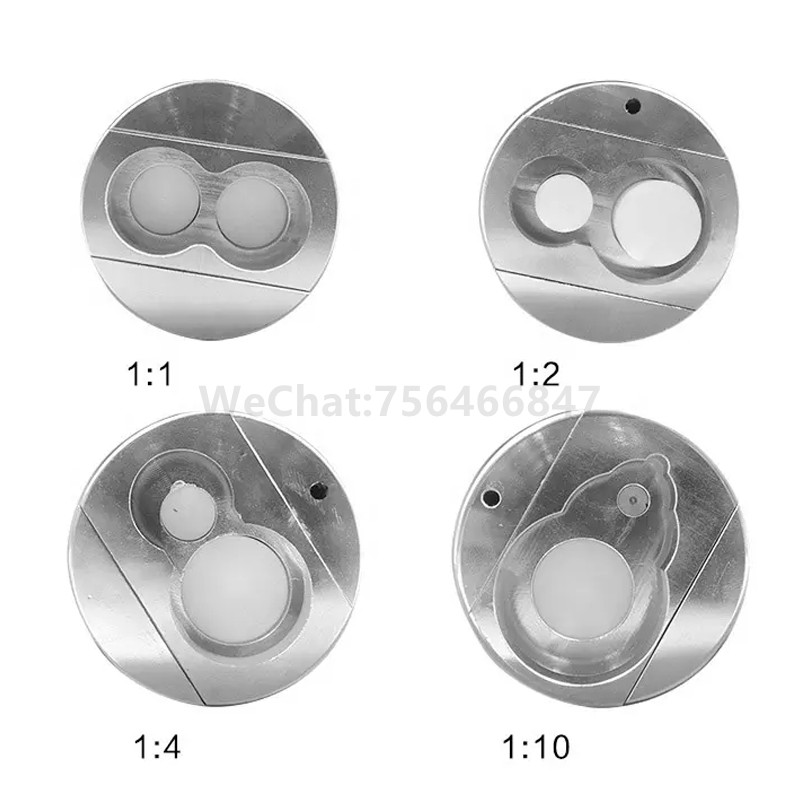

This lightweight two-liquid dispenser is suitable for 1:1 and 2:1 4:1 10:1 two-component glues such as epoxy, silicone and AB. With manual and semi-automatic functions, in the manual state, press the foot switch to continuously discharge the glue, and release the foot switch without releasing the glue; in the semi-automatic state, press the foot switch, release and press the set time. Glue out and stop the glue after the execution. Equipped with automatic push-back lever device, it can adjust the glue speed and glue time freely, which is convenient, fast and accurate!

AB glue epoxy adhesive special

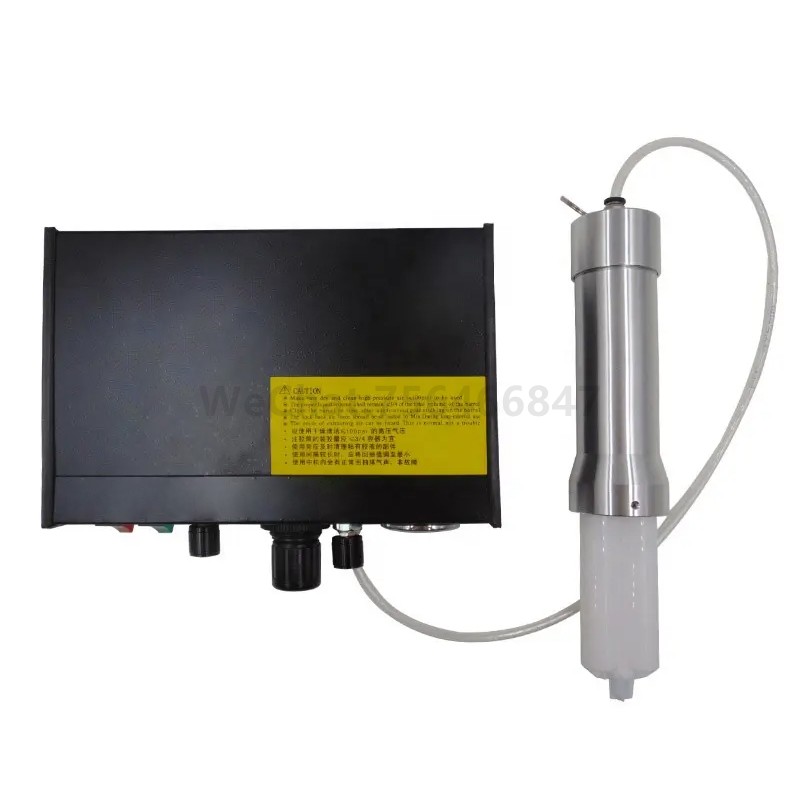

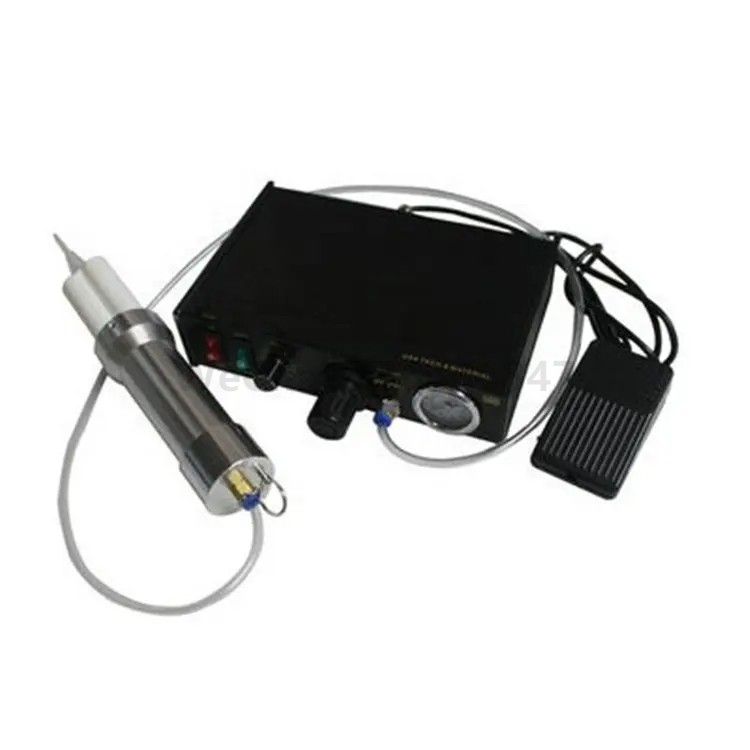

Product Name: AB glue dispenser (by a semi-automatic dispenser + a pneumatic glue gun)

control method	Pneumatic method
Dispensing function mode	Quantitative mode / manual mode
Dispensing pressure setting	0.05~0.70Mpa
Dispensing time setting	DIP switch 0.01~99.99S
Dispensing time control circuit	IC control digital circuit
Repeatability	±0.01%
Vacuum pressure setting	0~20Kpa
Vacuum function	Vacuum adjustment mechanism for leakage prevention
Input and output signal	Input no contact or contact
Input and output signal	Output dispensing end standard level signal output
Provide air pressure	Above 0.05Mpa
Power supply	AC100V~110V,60Hz
Power supply	AC220V~240V,50Hz,17W

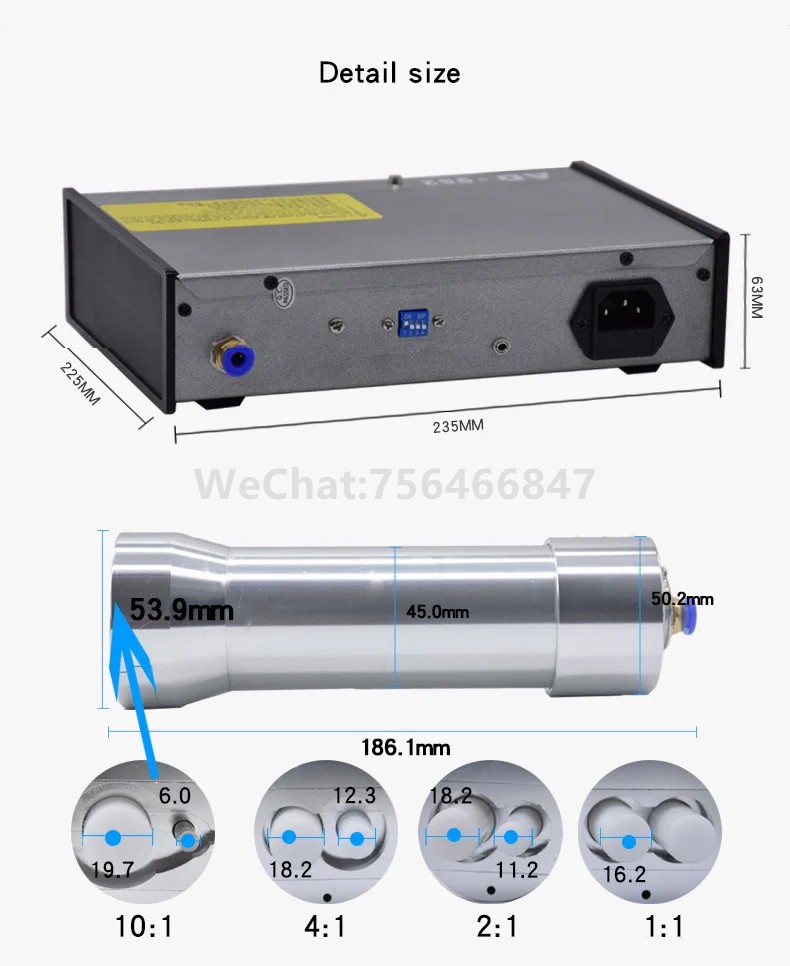

Dimensions	235mm×225mm×63mm
weight	4kg

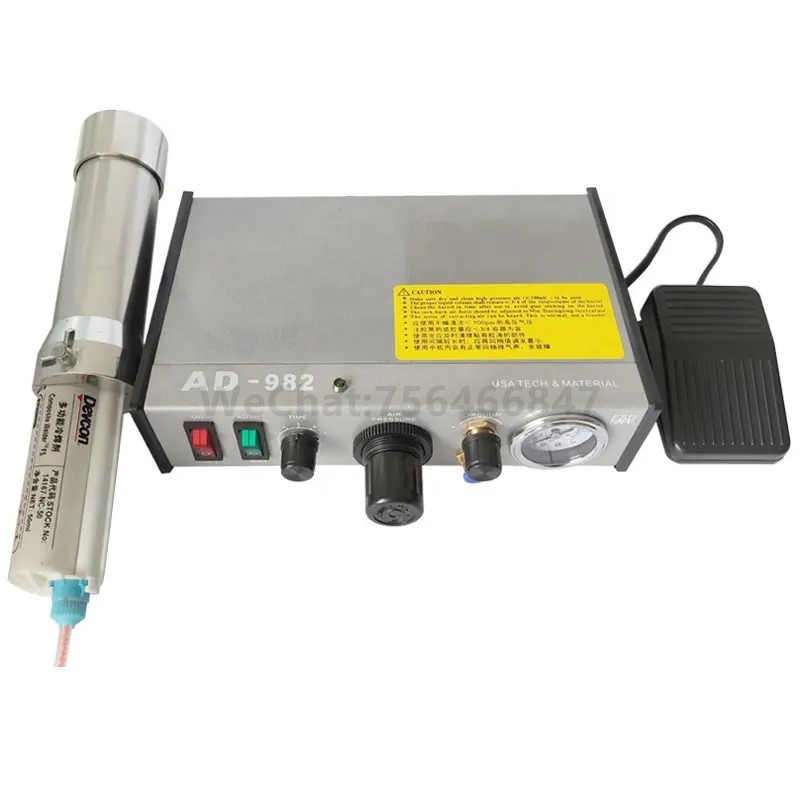

AB rubber cartridge with 982 controller diagram.jpg

FAQ

1.How to guarantee the quality of your products?

1) Strict detection during production.

2) Before shipment, the products shall be strictly checked, and after debugging, the products shall be packaged and shipped to ensure that there are no problems.

2. What is your terms of payment？

T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

3. May I buy samples from you?

Yes! You are welcome to place sample order to test our superior quality and service. Sample's price is the same as bulk's price. Or you can send us samples of your product and we test it on machine. Video for you to make samples.

4. How to operate the equipment?

We have made video for you to show you how to do it step by step. Contact our engineers at any time when you don't understand, support video and telephone communication.

5. Do you have any After-Sales service?

Yes! The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine, ensuring you can operate the machine easily.

6. Are you just trading company or factory?

We are professional manufacturer for automation machine since 2017. Our factory is located in Shenzhen City,Guangdong Province. Welcome you to visit our factory.
