Dispenser

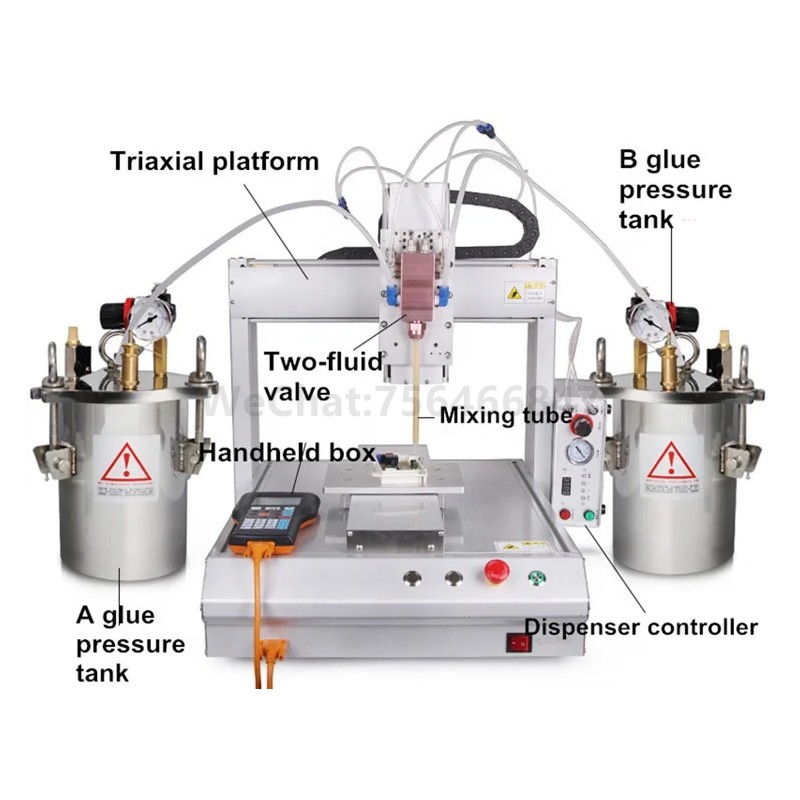

Single station AB glue pressure bucket automatic dispensing machine

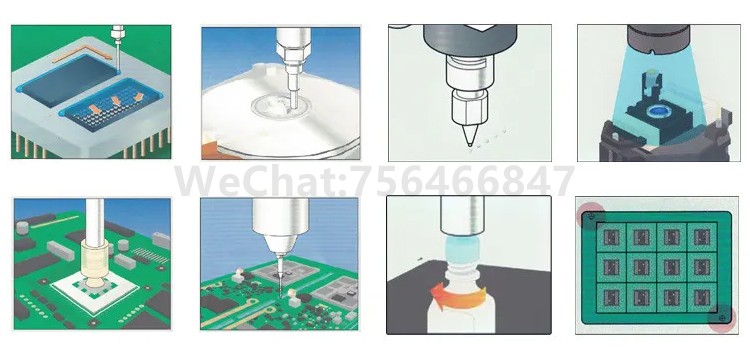

Application scope: Sensors, relays, power adapters, electronic toys, buzzers, electronic components, household appliances, electric vehicle controllers, computer digital products, handicrafts, mobile phone boards, coil products, button products, battery boxes, speaker outer ring adhesive bonding; Speaker packaging and dispensing, semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding adhesive, COB, IC, PDA, LCD sealing adhesive, IC packaging, IC bonding, chassis bonding, optical device processing, hardware component packaging coating, quantitative liquid filling, chip bonding, automotive mechanical component coating, mechanical sealing, etc.
Add WeChat 756466847 to learn more

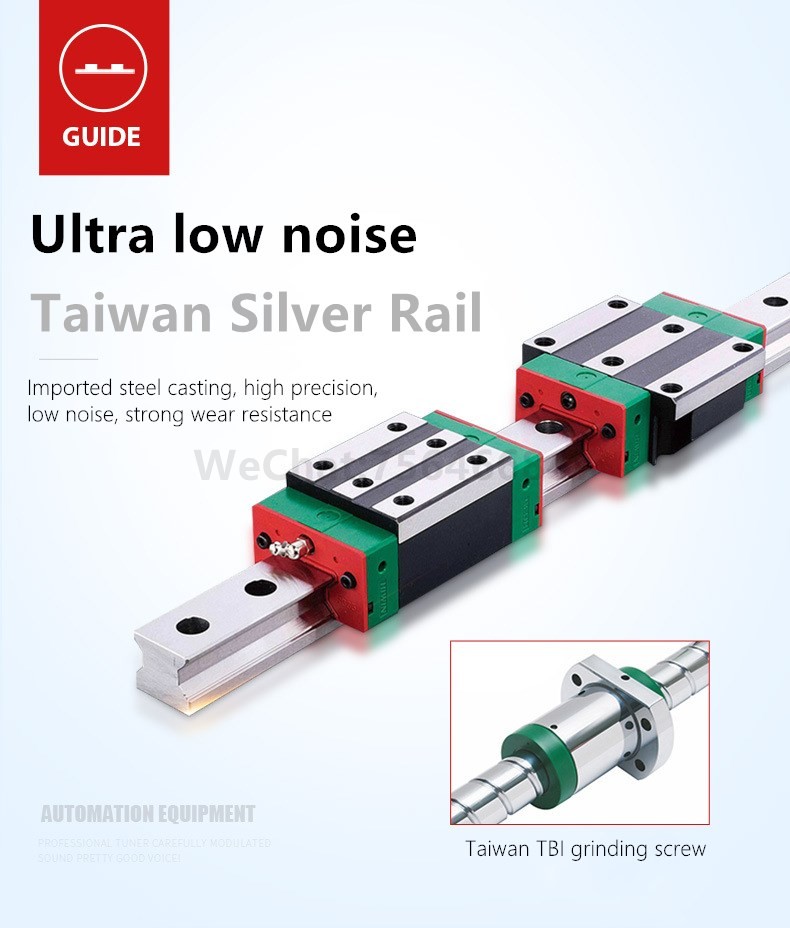

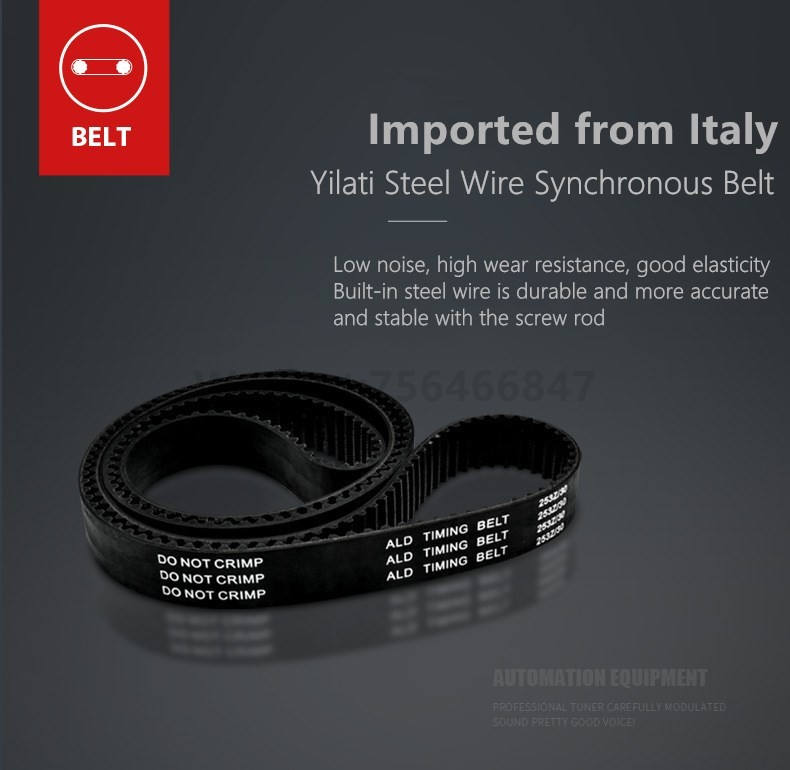

Products Description

Specification

Model	3/4/5/6/7 Glue/Adhesive Dispensing Robot
Power	110-220V
Controllable Axis	3
Movable range	X	300/400/500/600/700mm
	Y	300/400/500/600/700mm
	Z	100mm
Max moving speed	X	600mm/s
	Y	600mm/s
	Z	400mm/s
Repeatability accuracy	±0.02 mm
Air pressure	0.5 ~ 0.7 Mpa
Programs Type	Teach Pandent
Storage for Programs	Up to 100 Programs, single Programs up to 1000 points
Working Temperature	0-40℃
Working Humidty	20%-90%(no condensation)
Weight	44/60/65/72/80 kg
Size	516x610x596 / 616x610x696 / 716x610x796 / 816x610x896 / 916x610x996 mm

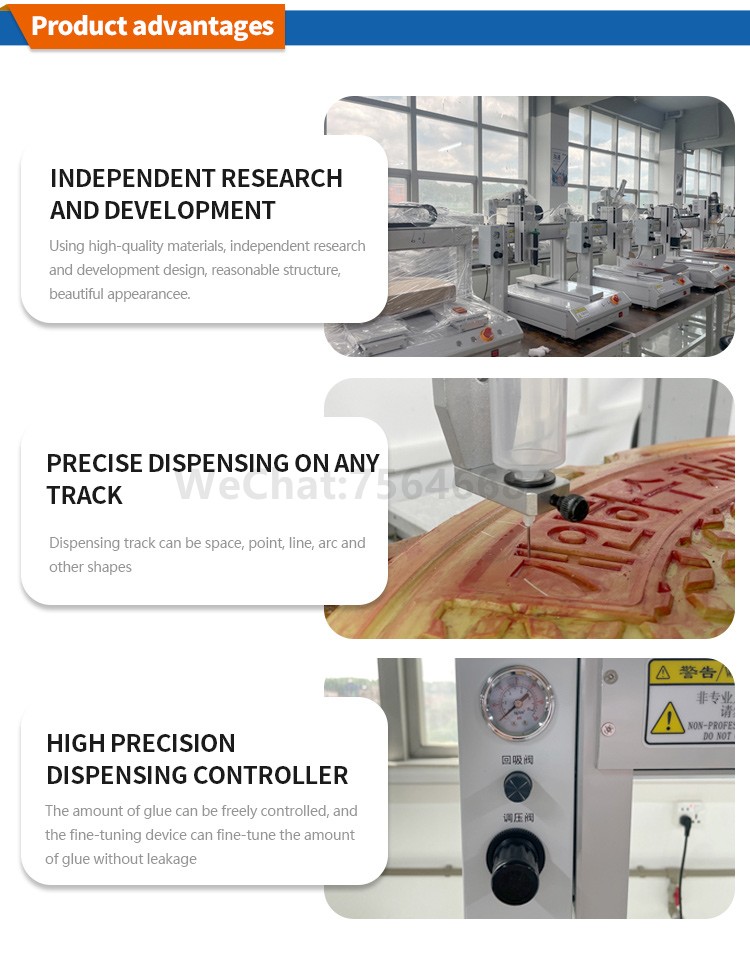

Description of Function

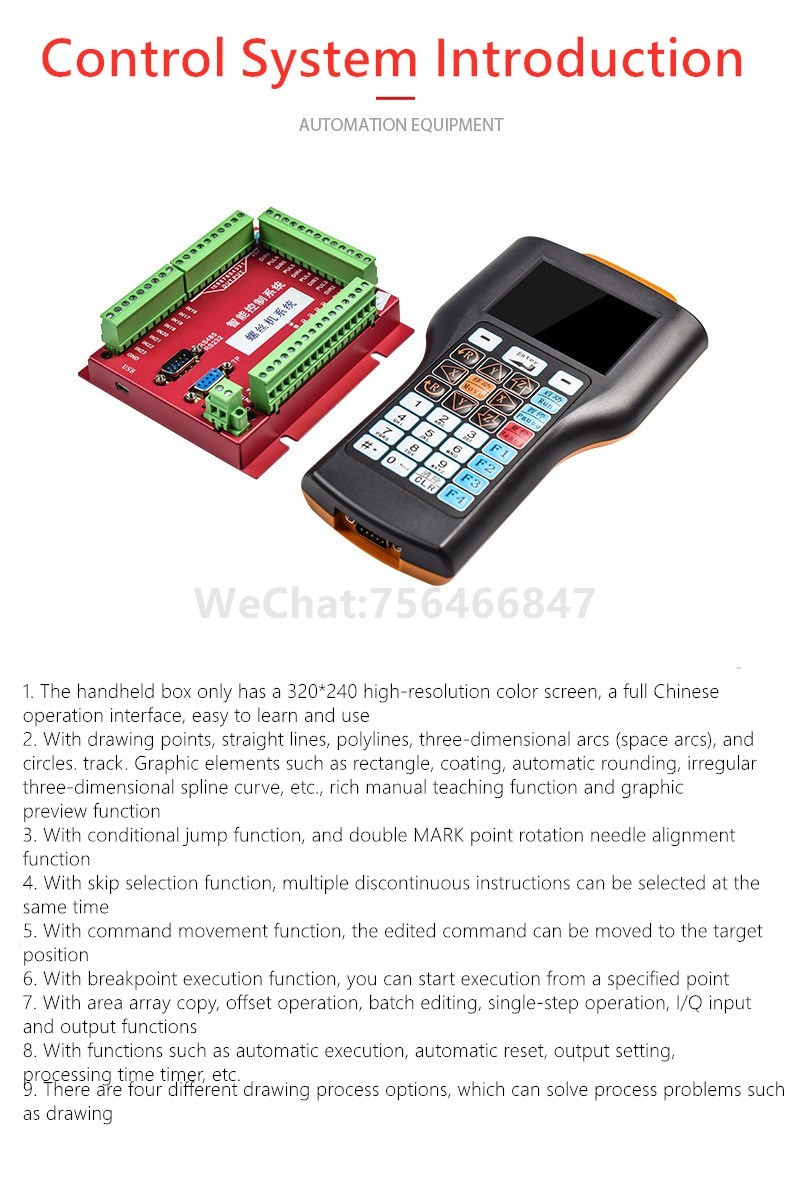

1. The handheld box adopts 320*240 high resolution color screen, full Chinese operation interface, it is easy to use.

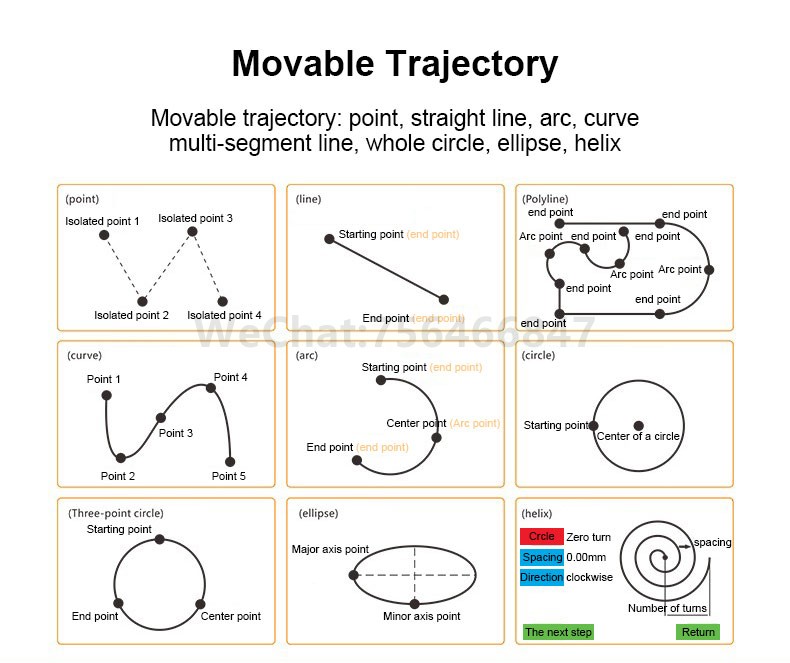

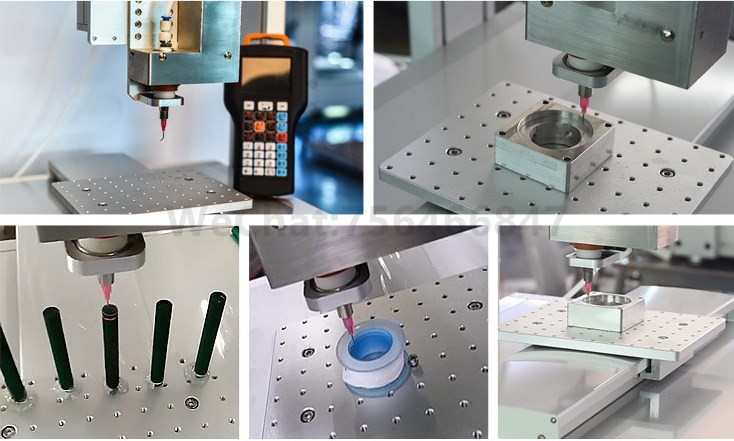

2. It has the painting point, straight line, multi line segment, three-dimensional arc (spatial arc), round, rectangular, runway, coating,automatic corner rounding, irregular 3D spline curve and other graphical elements; rich handmade teaching function and graphical preview function.

3. It has the conditional jump function, and the function of double MARK point rotation and needle alignment.

4.It has the function of breakpoint executive function, can be executed from the specified point.

5. It has the function of area array replication, migration operation, batch edit, single-step operation, I/O input and output. 6. It has the automatic execution, automatic reset, output setting, processing time timer.

7. It has four kinds of wire drawing process as options, which can solve the problem of drawing process.

8. Support DXF and PLT file import, automatic path optimization.

9. After action parameter editing is completed, through the serial port, download the action parameters to controller, then it can independently run. Action parameter can also be saved to a handheld box’s SD card, which is convenient to call; and it can make graphics copying and saving between the equipments.

10. The handheld box is equipped with 2G SD card which can store thousands of processing files, each file can support 8000 instruction, you can bring up to use.

11. The hardware has 4 gun channels for control, 4 general outputs, 8 inputs, 12 high-speed pulse outputs; and the accuracy of control of dispensing time is 1ms.

12. Each action command has independent glue opening delay, glue closing delay, gun retreat height, independent function of glue closing in advance and flexible batch modification function can improve the editing efficiency, and also can solve the problem of glue stacking.

13.Support batch modification of parameters according to the type.

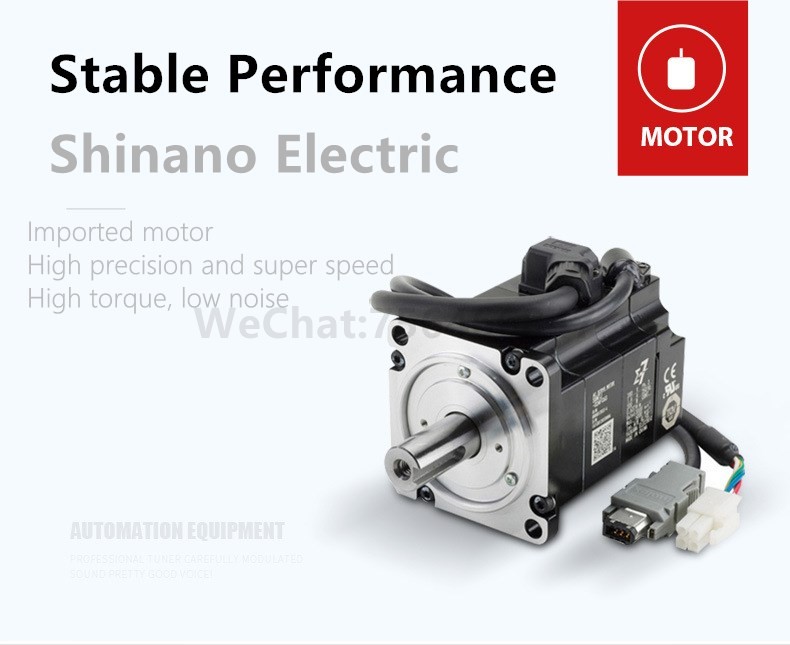

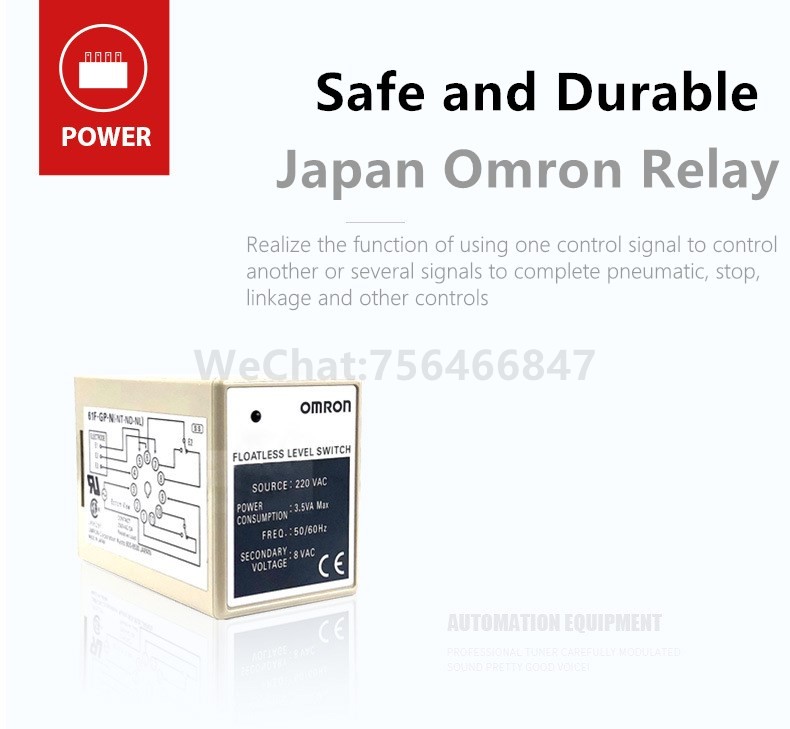

Controller hardware characteristics

The number of shaft of the motor: 3 shafts (XYZ)

Pulse frequency: 100K

IO port number: 8 dedicated inputs (XYZ origin point,start/pause, pause, reset/emergency stop button), 4 special glue gun outputs (4 glue gun switch controls, direct drive solenoid valve, driving current of 2A). 4 general I/O outputs, 8 I/O inputa, 12 high-speed "NPN open collector circuit" 5-24VDC outputs,rated current of 0.5A.

IO input type: optocoupler input.

Storage capacity: 16M

Interface mode: DB44 interface

Working voltage: 24V DC

Working temperature: 70 ℃

Storage temperature: -40 ℃ -70 ℃

Working humidity: 40%-80%

Storage humidity: 0%-95%

Characteristics of handheld box hardware

Interface mode: equipped with USB interface and serial port, USB port is used for connecting a computer. Serial port is used toconnect a box.

Storage mode: configure the 2G SD card.

Display configuration: the resolution of 320*240, 3.2-inch color LCD screen

FAQ

1.How to guarantee the quality of your products?

1) Strict detection during production.

2) Before shipment, the products shall be strictly checked, and after debugging, the products shall be packaged and shipped to ensure that there are no problems.

2. What is your terms of payment？

T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

3. May I buy samples from you?

Yes! You are welcome to place sample order to test our superior quality and service. Sample's price is the same as bulk's price. Or you can send us samples of your product and we test it on machine. Video for you to make samples.

4. How to operate the equipment?

We have made video for you to show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication.

5. Do you have any After-Sales service?

Yes! The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine, ensuring you can operate the machine easily.

6. Are you just trading company or factory?

We are professional manufacturer for automation machine since 2017. Our factory is located in Shenzhen City,Guangdong Province. Welcome you to visit our factory.

Prev：300CC sleeve dual station automatic dispensing machine Next：Handheld semi-automatic AB glue dispenser
