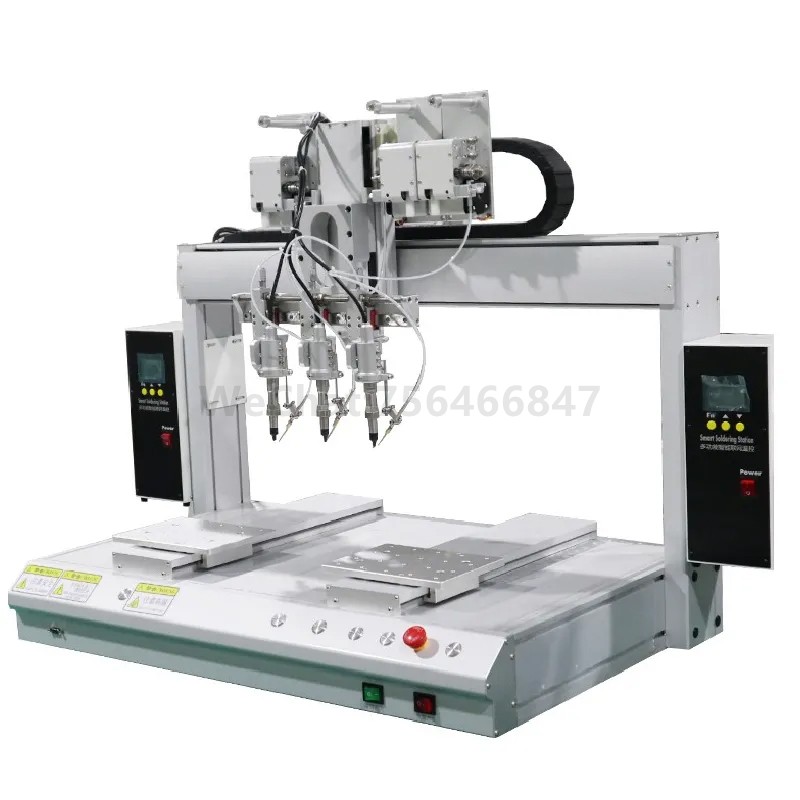

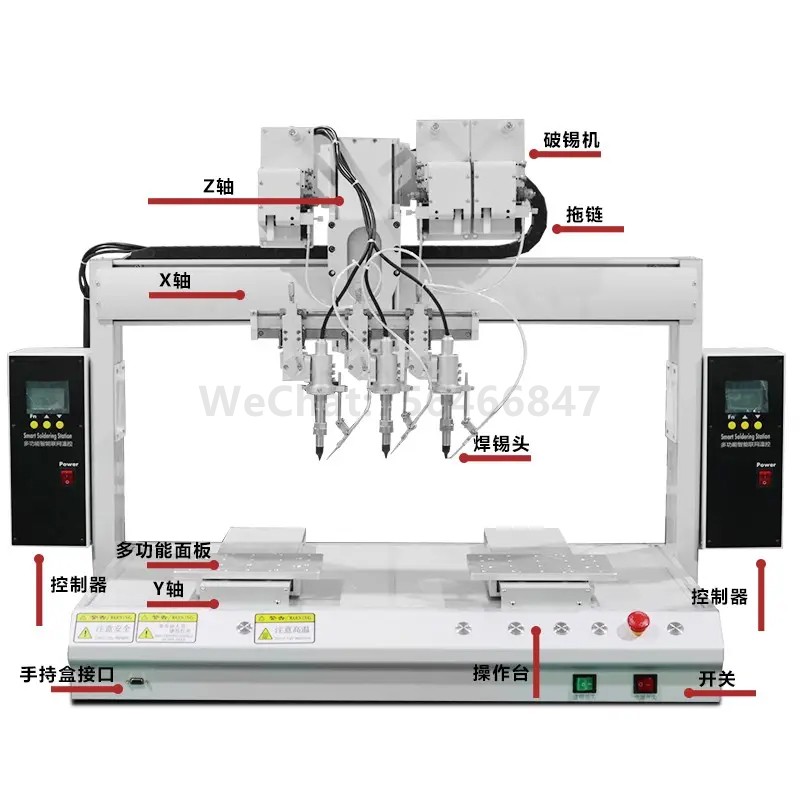

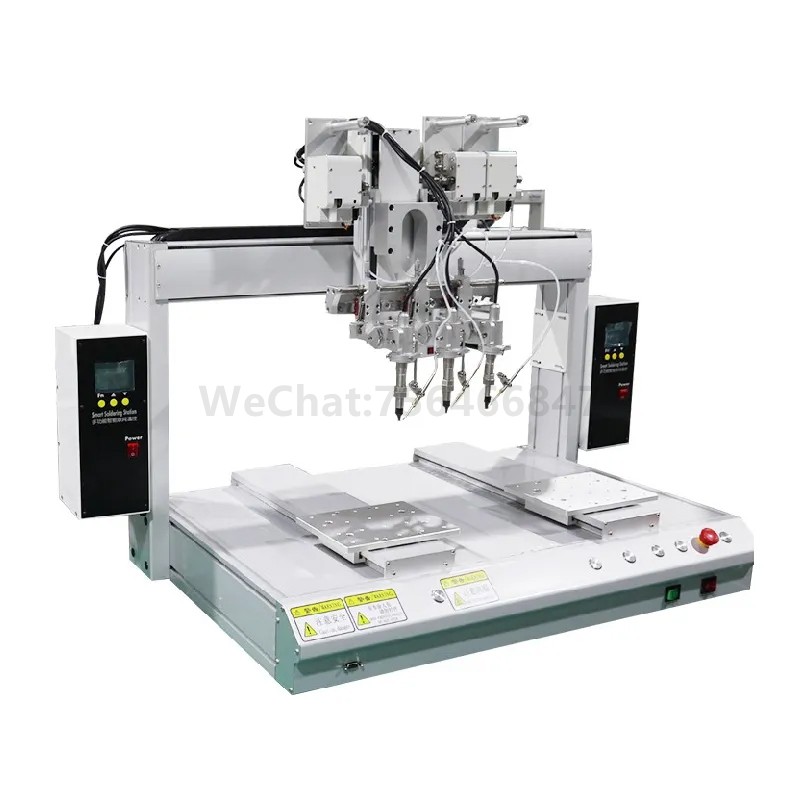

Three head dual station automatic soldering machine

Double Station Block To Block Soldering Machine With Functions Of Luotie Head
Add WeChat 756466847 to learn more

Product Describtion

Technical parameters:
model	Model can be customized
Working range X/Y/Z (MM)	Model can be customized
Maximum speed (MM/S)	five hundred
Repetitive round-trip accuracy (MM)	±0.02MM-0.05MM
Transmission mode	Taiwan Shangyin guide rail (slider)
operating system	LCD panel/hand-held programmer
Program storage capacity	999 parameter files (65535 points per file)
Sport mode	3 Axis point-to-point, continuous straight line
Expand IO	4 inputs/4 outputs
Weight (KG)	68KG
work environment	Humidity: 20-90% ℃, temperature: 0-40 ℃
Main configuration:
name	unit	quantity	remarks
Motor	set	4	Rexay/Gemicon/Best
drive	set	4	Nippon Shinano/Best/Jermykon
Temperature control and heating core	set	1	Weller
Temperature Range	℃		0-500℃
a sensor	piece	4	Omron, Japan
Power Supply	set	1	Mingwei, Taiwan
Automatic soldering machine system	set	1	Full time/Yuntu

Product features:

◎ Precision temperature controller, fast temperature difference compensation;

◎ Imported heating element from Germany WELLER, with uniform and stable temperature;

◎ Program optimization, simple operation and teaching programming;

◎ High precision tin feeding mechanism, without blocking tin, with tin breaking function;

◎ It can be equipped with the function of rotary soldering, supporting spot welding and drag welding;

◎ The automatic soldering machine can deliver tin more accurately, and there is no tin explosion during soldering;

◎ The automatic soldering machine has the functions of spot welding, oblique welding, buffeting welding, etc.

◎ The soldering tin control system adopts the world's leading motion control card, which is more user-friendly than PLC programming. The working program of the equipment can be copied point to point and block to block, reducing the time for program writing.

◎ The automatic soldering machine has the function of automatically clearing the soldering head, which can improve the efficiency of soldering to a certain extent.



FAQ

1.How to guarantee the quality of your products?

1) Strict detection during production. 2) Before shipment, the products shall be strictly checked, and after debugging, the products shall be packaged and shipped to ensure that there are no problems.

2. What is your terms of payment？

T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

3. May I buy samples from you?

Yes! You are welcome to place sample order to test our superior quality and service. Sample's price is the same as bulk's price. Or you can send us samples of your product and we test it on machine. Video for you to make samples.

4. How to operate the equipment?

We have made video for you to show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication.

5. Do you have any After-Sales service?

Yes!The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine, ensuring you can operate the machine easily.

6. Are you just trading company or factory?

We are professional manufacturer for automation machine since 2017. Our factory is located in Shenzhen City,Guangdong Province. Welcome you to visit our factory.
