Ultrasonic Welding

  • 15kHz-4200W L4000 Standard Digital Plastic Welding Machine
  • 15kHz-4200W L4000 Standard Digital Plastic Welding Machine
  • 15kHz-4200W L4000 Standard Digital Plastic Welding Machine

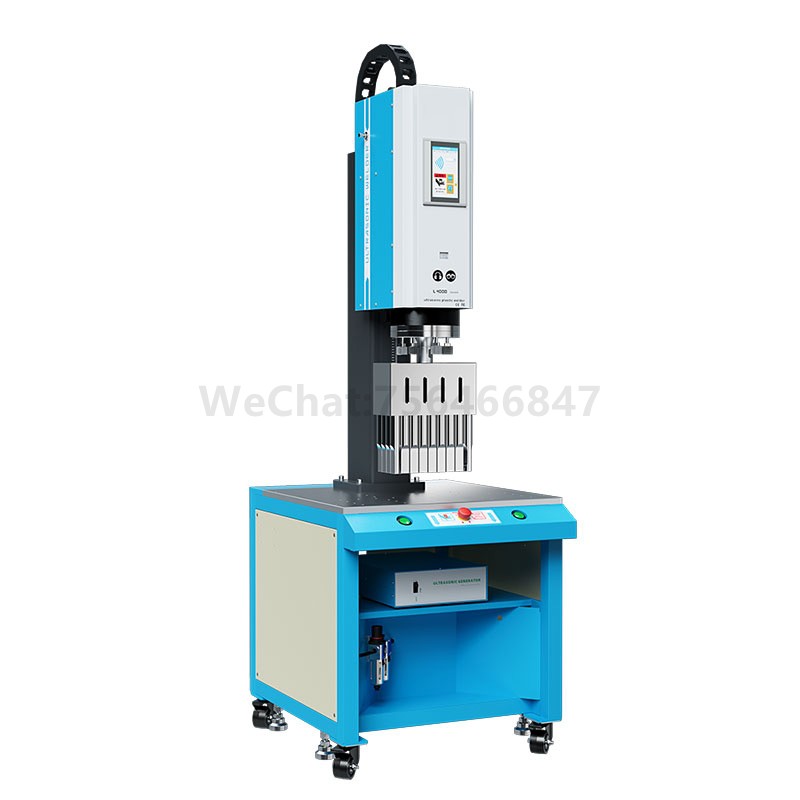

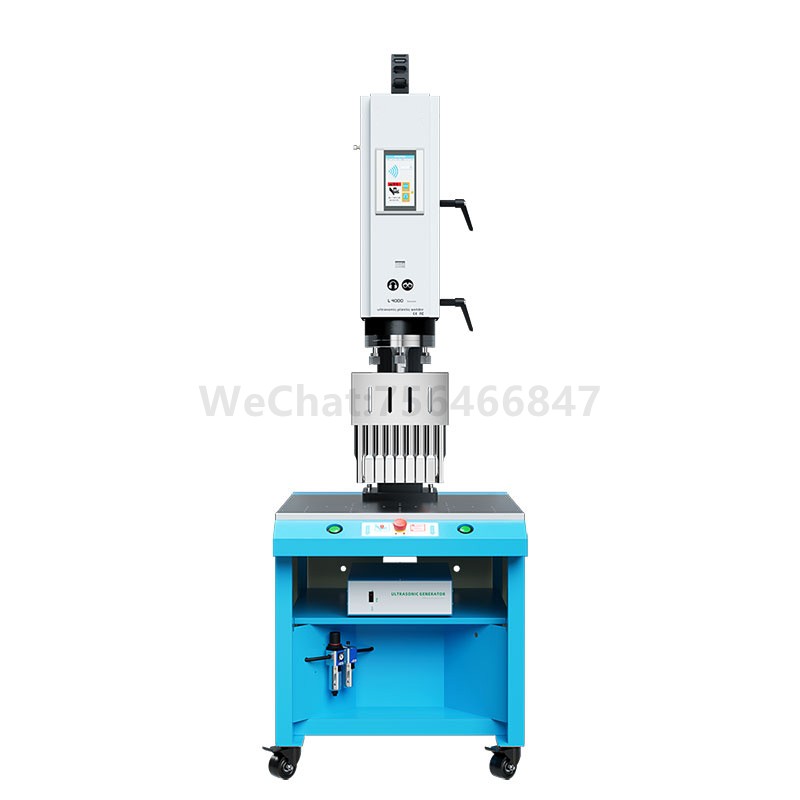

15kHz-4200W L4000 Standard Digital Plastic Welding Machine

  • Product Specification

    Ultrasonic frequency: 15kHz Ultrasonic power: 4200W

    Application fields: medical treatment, electronic appliances, printing consumables, household appliances, auto parts industry, daily necessities, packaging, textile industry, stationery and toys

    Electric box type: analog electric box

  • Add WeChat 756466847 to learn more

Products details


Features

The digital ultrasonic electric box is equipped with a control module with the functions of "system protection detection" and "automatic tuning", which stabilizes the power output and replaces the mold without re-tuning the frequency, improving the safety and intelligence of the electric box and the entire set of equipment

Trigger mode: time trigger

High power output: suitable for high difficulty and large area welding

CNC processing of the whole body, heavy pressure casting process, strong rigidity, beautiful appearance and more precision

Comply with international CEFCC certification standards



机型 TypeLO4000 StandardL4000 Standard
频率 Frequency15kHz15kHz
功率 Power4200W落地型4200W落地型
输入电压 Input voltageAC220VAC220V
气缸规格


Cylinder Size(mm)

100×100100×100
机身行程


Machine journey

80-542mm82-482mm
输出时间


Oscillation time

0.01-9.99s0.01-9.99s
输入气压


Air pressure

>0,≤7bar>0,≤7bar
焊接面积


Welding capability

Φ350mmΦ350mm
操作开关


Operation Switch

双⼿启动,前部有紧急制动,也可附加外部开关
Two-hand release,emergency stop button at the front,and adding external control switch supported
外形尺寸 Size(mm)压机 Press880×750×2197(数字化机型)
965×785×2185(模拟机型)
电箱


Generator

425×3 25×118(数字化机型 )
820×750×210(模拟机型 )
净重 Weight压机 Press267kg(数字化机型)274kg(数字化机型)
284kg(模拟机型)275kg(模拟机型)
电箱 Generator12kg(数字化机型)
40kg(模拟机型)



L745 Standard Digital Ultrasonic Plastic Welder


FAQ:

Q:Why choose ultrasonic welders?

A.It is cost effective, as it shortens manufacturing time.

B.It is environmentally-friendly, as no solvents, adhesives or any other reagent is needed.

C. It improves the quality of the products.

D. It ensures safety in production.



Q:Is ultrasonic harmful to the human body?

No. Ultrasonic is a mechanical wave, and when it is propagating, the energy will concentrate on the same specific direction, and it will not cause harm to human body.



Q: What logistic forwarder do you usually work with?

A: We work with EMS, TNT, UPS, FEDEX and other logistric forwarders. Assigned your own forwarder for shipment is available.



Q:How to choose the Frequency of ultrasonic welders?

A:The material and size and other factors will be taken into consideration.

Please contact us, we will recommend the suitable machine according to your products.



Q:Can you make customized horns (sonotrodes and fixtures) ?

A:We can make the customized horns according to your plastic parts.



Q: What‘s your warranty terms?

A:Machines for one year,generator for half a year,horn and transducer for three months.



Q:What‘s the lead time?

A:If only conventional models, usually 3~10 working days. If customized mold required, it needs negotiate.
