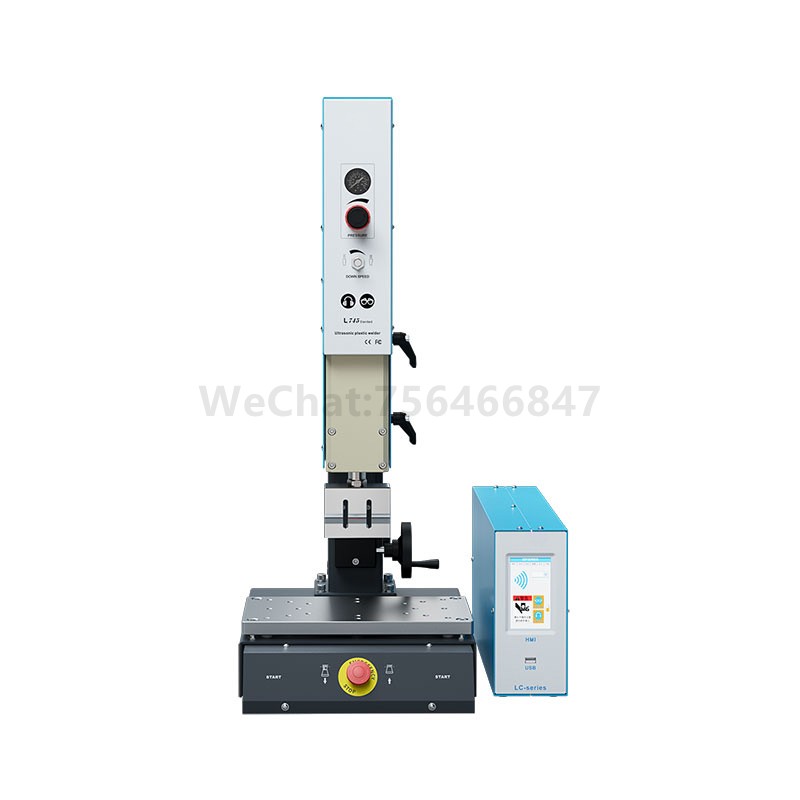

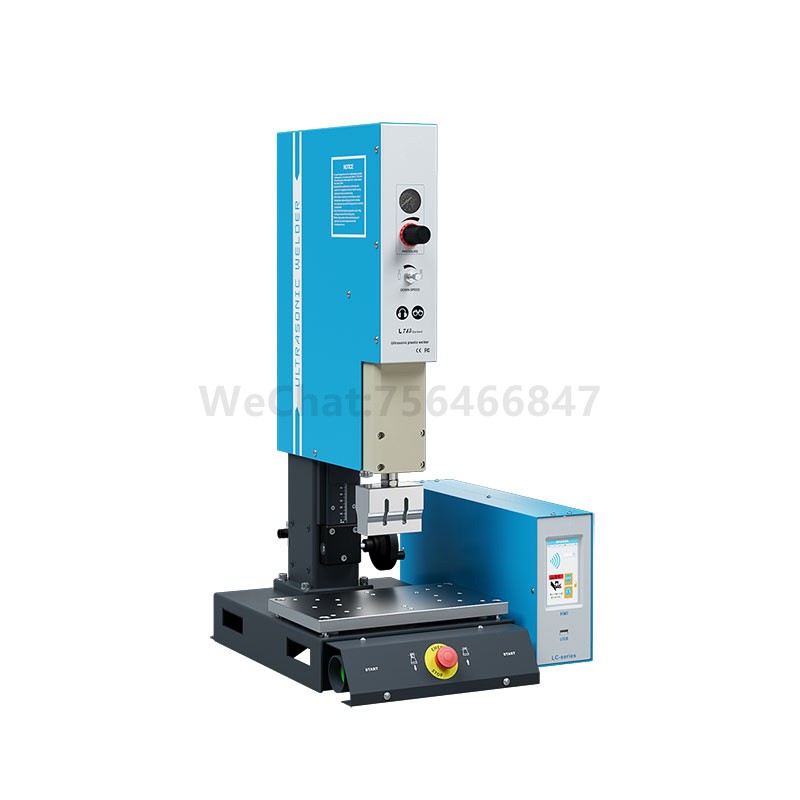

L745 Standard Digital Ultrasonic Plastic Welder

Product Specification
Frequency/Power: 28/30/35/40kHz– 1200W
The system is equipped with a control module with “system protection detection” and “automatic tuning” functions, stable power output, no need to re-adjust the frequency for mold replacement, and improves safety and intelligence
Equipped with intelligent monitoring/adjustment function to ensure stable output of ultrasonic energy
Quality management function: the system automatically saves welding related parameters for easy traceability and can be exported through the USB port
Add WeChat 756466847 to learn more

Products details

• Data storage and export function to realize digital management and monitoring

• The upper and lower limits can be set for welding parameters, and the system can automatically judge whether the welding effect is qualified or not according to the limit values

• The vibrating cylinder is connected by high-precision heavy-duty linear slide rails, with greater load capacity, improved welding accuracy, and stronger stability

• Adopt high-precision fine-tuning structure, the adjustment accuracy is 0.02mm

• Comply with international CE and FCC certification standards

机型 Model		L745 STD 数字
频率 Frequency		28 / 30 / 35 / 40kHz
功率 Power		1200W
输入电压 Input Voltage		AC220V
气缸规格 Cylinder Size (mm)		40 X 60
机身行程 Machine Journey		60-265mm
输出时间 Oscillation Time		0.01-9.99s
输入气压 Air Pressure		＞1，≤7 bar
焊接面积 Welding Capability		Φ40mm
操作开关 Operation Switch		双手启动，前部有紧急制动，也可附加外部开关 Two-hand release,emergency stop button at the front,and adding extemal control switch supported.
外形尺寸 Size(mm)	压机 Press	490315 950
	电箱（数字机型） Generator (Digital Type)	430230108
净重 Weight	数字机型压机 (Digital Press)	43kg
	电箱（数字机型） Generator (Digital Type)	7.5kg
Heightening column (optional) Heightened Pillar （Optional）		Square column: 100mm(L)×80mm(W), increasing column specification (H): 150mm/200mm(height optional)

L745 Standard Digital Ultrasonic Plastic Welder

FAQ:

Q:Why choose ultrasonic welders?

A.It is cost effective, as it shortens manufacturing time.

B.It is environmentally-friendly, as no solvents, adhesives or any other reagent is needed.

C. It improves the quality of the products.

D. It ensures safety in production.

Q:Is ultrasonic harmful to the human body?

No. Ultrasonic is a mechanical wave, and when it is propagating, the energy will concentrate on the same specific direction, and it will not cause harm to human body.

Q: What logistic forwarder do you usually work with?

A: We work with EMS, TNT, UPS, FEDEX and other logistric forwarders. Assigned your own forwarder for shipment is available.

Q:How to choose the Frequency of ultrasonic welders?

A:The material and size and other factors will be taken into consideration.

Please contact us, we will recommend the suitable machine according to your products.

Q:Can you make customized horns (sonotrodes and fixtures) ?

A:We can make the customized horns according to your plastic parts.

Q: What‘s your warranty terms?

A:Machines for one year,generator for half a year,horn and transducer for three months.

Q:What‘s the lead time?

A:If only conventional models, usually 3~10 working days. If customized mold required, it needs negotiate.
