Solder

  • High production PCB desktop automatic soldering robot

High production PCB desktop automatic soldering robot

  • High production PCB desktop soldering robot automatic soldering robot 4 axis solder robot

    Packaging & Delivery

    Selling Units:Single item

    Single package size:58X64X80 cm

    Single gross weight:55kg

    Package Type:Export wooden box

    Lead Time :

        Quantity(Sets)     1 - 1     2 - 5     >5

        Est. Time(days)     10     15     To be negotiated

  • Add WeChat 756466847 to learn more

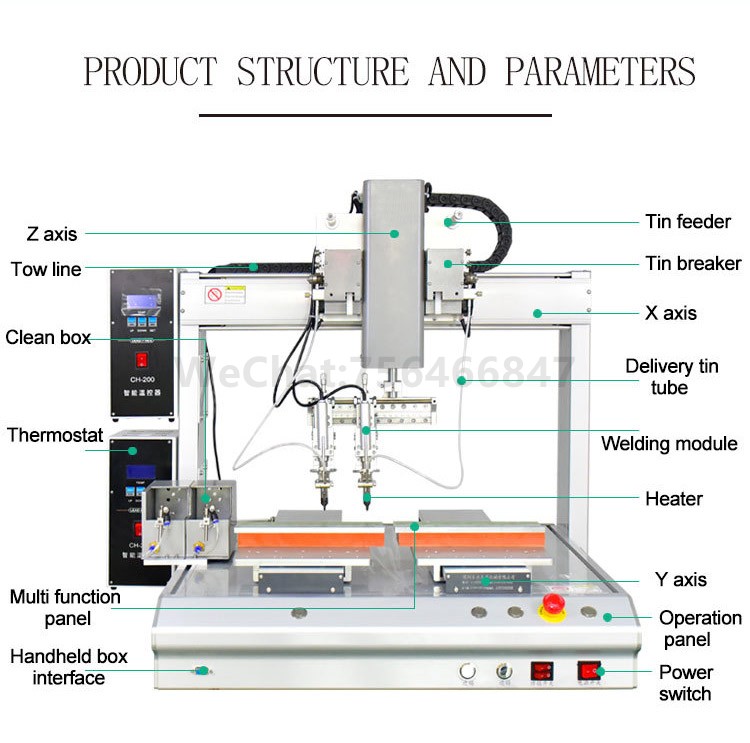

Parameter:
Model H331
Number of controlled axes Triaxial
Effective travel X axis Y axis  Z axis
300mm 300mm 100mm
Transmission mode Double-track timing belt
Power source Stepper motor
Top speed X, Y axis 500mm / sec, Z axis 300mm / sec
Repeat accuracy ±0.05mm
Maximum load X/Y/Z-5kg/5kg/3kg
Control System Three-axis control system
File storage space A single processing file takes up to 3M storage space (5000 processing points)
Supporting Documents CAD,CorelDRAW
Machine power AC110-250V  50-60HZ 350W
Heating power 150W
Temperature range 50-500 degrees
Tin feeder Standard tin broken tin feeder
Cleaning box
Model Dual platform  automatic soldering machine Program recording mode 100 groups
Temperature Control System WELLER Display method LCD teaching box
Heater WELLER Motor system Japanese micro stepping precision motor
Temperature range 0-500℃ slideway Taiwan Silver
Temperature error ±2℃ Belt Italian elatai synchronous belt
Dispensing range X / Y / Z (mm) 500/300/300/100/360° photoelectric Omron
Maximum load 15kg power supply AC110V-220V
Moving speed (mm / sec) 0-500 External control interface RS232
Resolution ability 0.01mm/Axis Weight (kg) 69KG
Repeat accuracy ±0.02mm/Axis Control System Three-axis control system

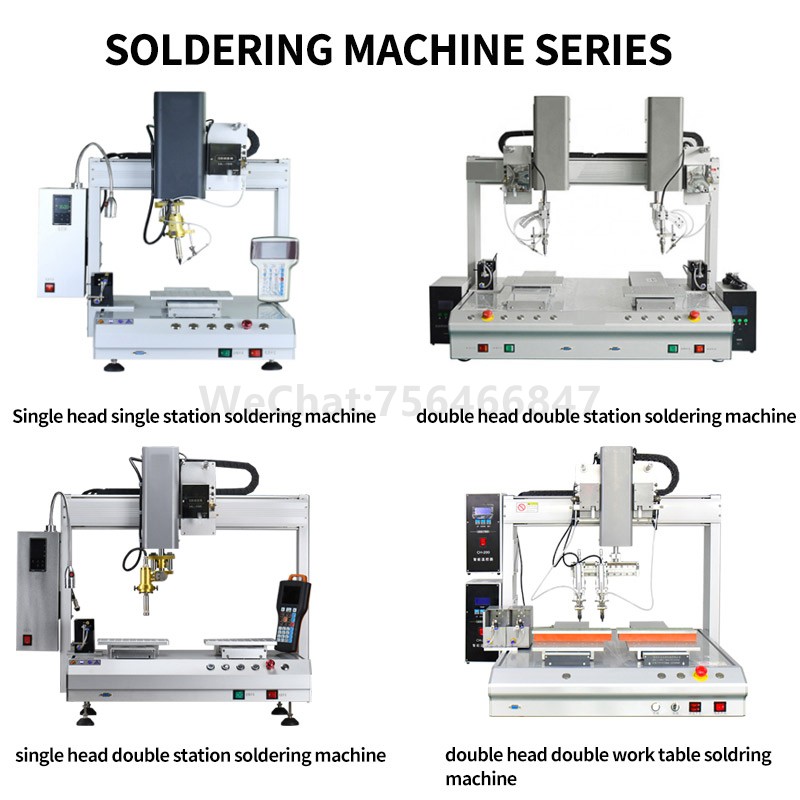

8-Axis Desktop High Efficiency Automatic Soldering Machine

8-Axis Desktop High Efficiency Automatic Soldering Machine

8-Axis Desktop High Efficiency Automatic Soldering Machine

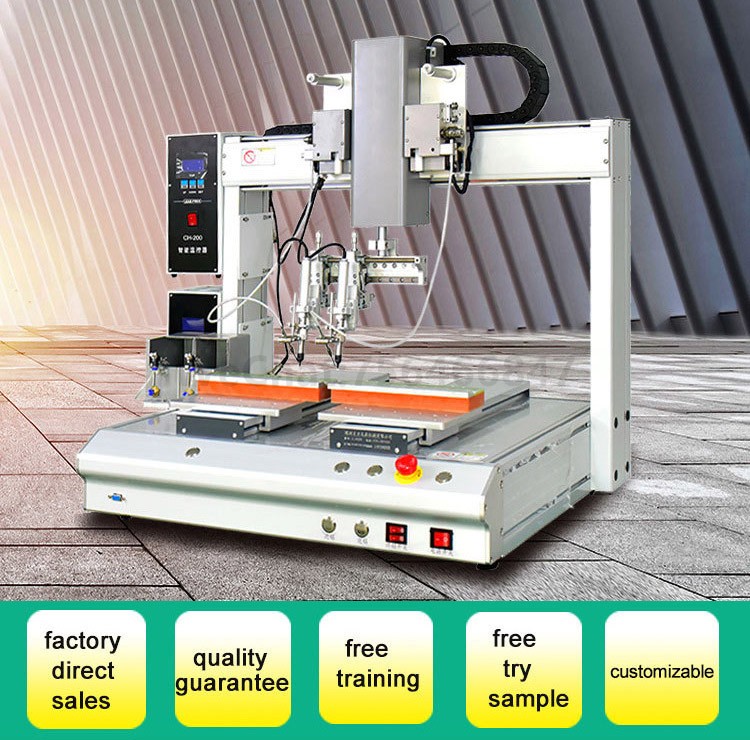

High production PCB desktop automatic soldering robot

High production PCB desktop automatic soldering robot

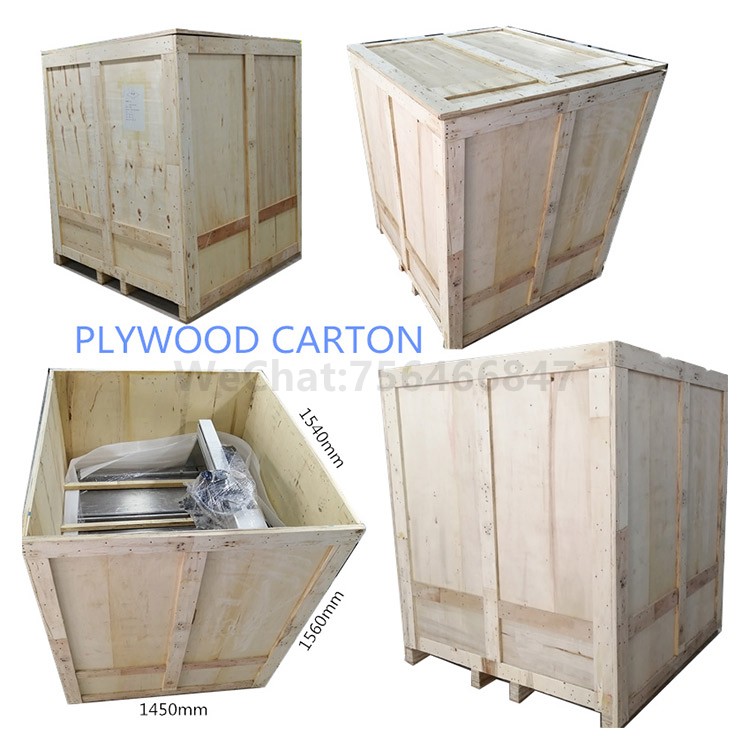

Packaging & Shipping

Packaging & Shipping

Desktop automatic 4 axis dip soldering robot


FAQ:

1 Q: Are you trading conpany or manufacturer?

A: We are manufacture.

2 Q: What is your terms of packing?

A: Generally, we pack our goods in hard brown box for small machine and plywood box for big machine.

3 Q: What is your terms of payment?

A: Payment≤10000 USD, 100% T/T in advance. Payment≥10000 USD, 50% T/T in advance, balance before shipment.

4 Q: What is your terms of delivery?

A: Sea shipping, air shipping

5 Q: How about your delivery time?

A: 7-25 days after receiving down payment. The specific time depends on the items and the quantity of your order.

6 Q: Can you produce according to the samples testing?

A: Yes, we can make testing by your sample or technical drawing.

7 Q: Do you test all your goods before delivery?

A: Yes, we test at least 5 times before shipping and running for 1 day or more.

8 Q: Warranty and after sales service

A: We provide 1 year warranty free for spare parts, Whole life technical support.
