Product Specification

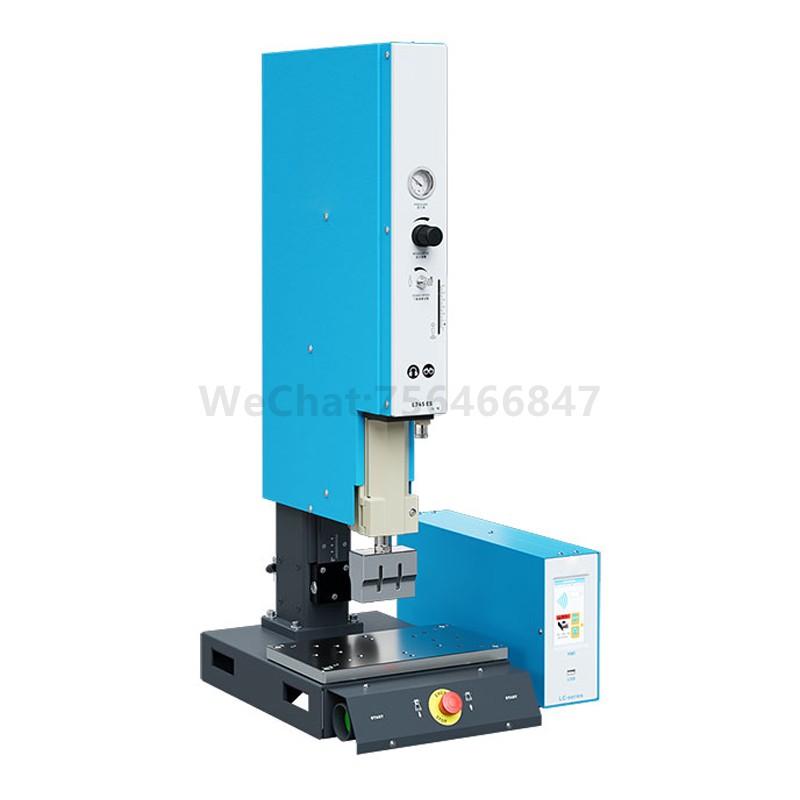

28 / 30 / 35 / 40kHz-1200W L745 ES Digital Ultrasonic Plastic Welder
Frequency/Power: 28 / 30 / 35 / 40kHz – 1200W
4 operating modes: manual mode, time mode, energy mode, power mode
Trigger mode: time trigger
4 types of intelligent management: amplitude management, quality management, data management, safety management
2 types of pressure control: welding pressure control, cooling pressure control
Products details
• Intelligent control feedback function: real-time automatic frequency tracking function, frequency locking function, circuit constant voltage function
• Built-in or external amplitude, 10%-100% adjustable
• Control precision: time precision 0.01 second
• IoT function: RS485 data connection, printer output
• Language menu: Chinese/English/Spanish/Portuguese
• 3 welding application modes: automatic assembly line mode, European safety mode, pulse mode
| người mẫu Model | L745 ES 数字 | |
| Tính thường xuyên Frequency | 28 / 30 / 35 / 40kHz | |
| quyền lực Power | 1200W | |
| Điện áp đầu vào Input Voltage | AC220V | |
| Thông số kỹ thuật xi lanh Cylinder Size (mm) | 40 X 60 | |
| Du lịch cơ thể Machine Journey | 62-242mm | |
| Thời gian đầu ra Oscillation Time | 0.01-9.99s | |
| Áp suất không khí đầu vào Air Pressure | ＞1，≤7 bar | |
| Khu vực hàn Welding Capability | Φ40mm | |
| Công tắc hoạt động Operation Switch | Khởi động bằng hai tay, phanh khẩn cấp phía trước, có thể lắp thêm công tắc ngoài Two-hand release,emergency stop button at the front,and adding extemal control switch supported. | |
| Kích thước Size(mm) | nhấn Press | 490*315*950 |
| Hộp điện tử (kỹ thuật số) Generator (Digital Type) | 430*230*108 | |
| trọng lượng tịnh Weight | Mô hình kỹ thuật sốunhấn (Digital Press) | 45kg |
| Hộp điện tử (kỹ thuật số) Generator (Digital Type) | 7.5kg | |
| 增高柱(Không bắt buộc配) Heightened Pillar （Optional） | Square column: 100mm(L)×80mm(W), increasing column specification (H): 150mm/200mm(height optional) | |
FAQ:
Q:Why choose ultrasonic welders?
A.It is cost effective, as it shortens manufacturing time.
B.It is environmentally-friendly, as no solvents, adhesives or any other reagent is needed.
C. It improves the quality of the products.
D. It ensures safety in production.
Q:Is ultrasonic harmful to the human body?
No. Ultrasonic is a mechanical wave, and when it is propagating, the energy will concentrate on the same specific direction, and it will not cause harm to human body.
Q: What logistic forwarder do you usually work with?
A: We work with EMS, TNT, UPS, FEDEX and other logistric forwarders. Assigned your own forwarder for shipment is available.
Q:How to choose the Frequency of ultrasonic welders?
A:The material and size and other factors will be taken into consideration.
Please contact us, we will recommend the suitable machine according to your products.
Q:Can you make customized horns (sonotrodes and fixtures) ?
A:We can make the customized horns according to your plastic parts.
Q: What‘s your warranty terms?
A:Machines for one year,generator for half a year,horn and transducer for three months.
Q:What‘s the lead time?
A:If only conventional models, usually 3~10 working days. If customized mold required, it needs negotiate.
