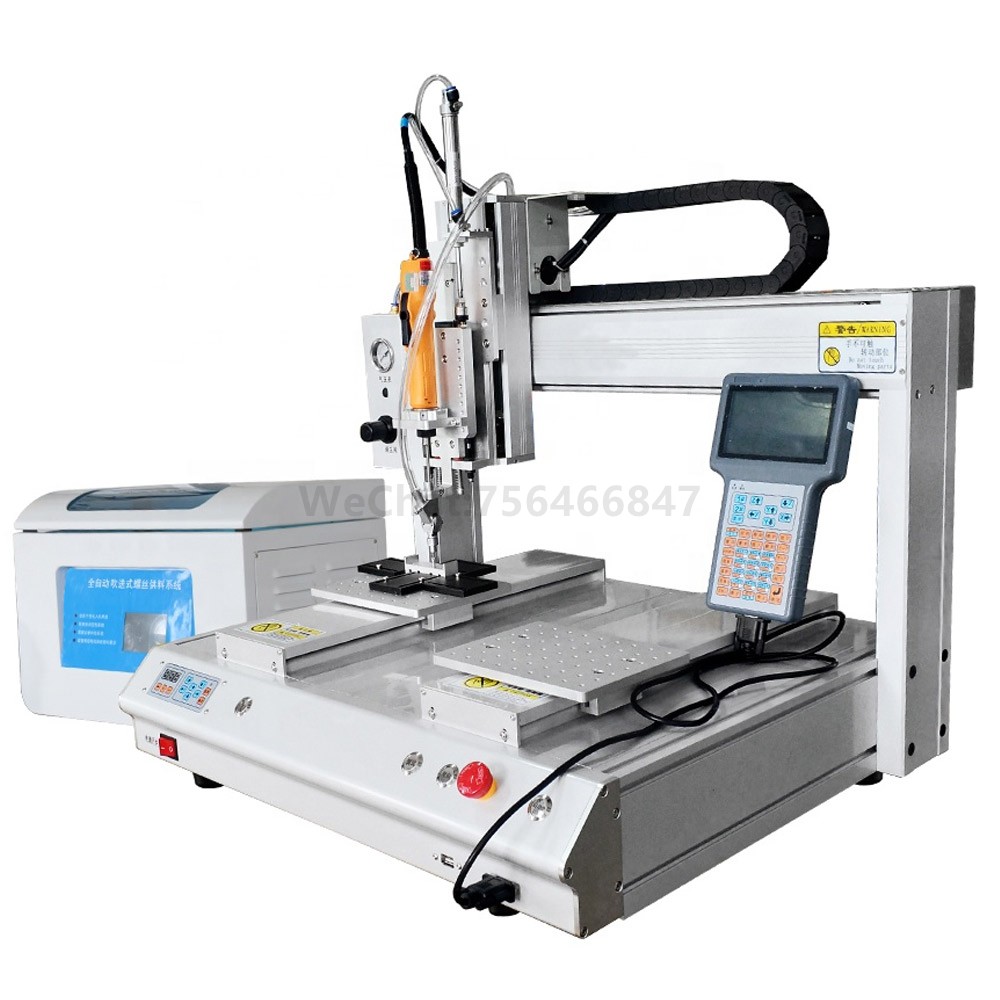

Máy thổi vít để bàn 4 trục Loại máy thổi đôi tự động Máy vặn vít khóa tự động

Product Advantages

1.Support computer graphics import function, can import PLT file and G code file.

2. Rich motion instructions and auxiliary instruction sets.

3. Convenient and friendly document teaching and editing functions, and provide a variety of advanced editing functions such as batch modification, array copying, graphic shifting, graphic zooming, automatic rounding, etc., with a common graphics library for customer calls.

4. Graphic display function, which can display the shape of the graphic in the processing file very intuitively.

5. Real-time dynamic display of processing trajectories.

6. Convenient and quick help system, press Shift+F1 key to call the help file in any interface.

7. Processing methods support cyclic processing, single processing, automatic processing, single-step processing.

Product Feature

1.The handheld box adopts 320*240 high-resolution color screen and full Chinese operation interface, easy to learn and use.

2. It has two modes of application: blowing and sucking.

3. Support multiple screw bins in suction mode.

4. support extended applications, such as locking screw dispensing, welding, testing, handling, assembly, etc.

5. support dual working platform and dual boot mode.

6. When the fault occurs, select the replay or skip mode.

7. with regional array replication, platform replication, batch editing, single-step operation and other functions.

8. After the operation parameters are edited, the action parameters are downloaded to the controller through the serial port, and the operation can be performed offline. Action parameters can also be saved In the hand-held box, easy to call.

9.can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

Application

Large and small household appliances, automotive electronics, instrumentation, toys, power supplies, mobile phones, LEDs,Tablet, computer keyboard, etc.

How to program it? How to use it?

(Operating system that can be switched between Chinese and English)

1.Open Programing Box. in the program screen

2. Move X,Y,Z button to adjust

3. Until screwdriver touch screw to finsh the setting of one point

Packaging & Shipping

Strong wooden cases suitable for a long distance shipment.

package weight :about 75kg

package size: about 800(L)*800(W)*710(H) mm

Our Services

1.We can make part design and mould design by software CAD,UG,PRO/E,Solidworks and Catia ect.

2.Available for OEM/ODM service and very super precision reachs to 0.001mm.

3.Standard mould base.

4.Send sample with test video to customers for check product quality and mould working condition.

5.During the period of making the mould,we'll report the process of the mould with pictures every Monday.

6.Customer's design are welcomed.

7.Competive price with on-time delivery.

8.One year warranty.
