Robot hàn nhúng 4 trục tự động để bàn

Automatic feeding tin wire high speed iron rotatable steady working select spot soldering drag soldering desktop soldering robot
Packaging & Delivery
Selling Units: Single item
Single package size:70X80X90 cm
Single gross weight:120 kg
Package Type:plywood carton
Lead Time :
Quantity(Cartons) 1 - 5 >5
Est. Time(days) 15 To be negotiated
Thêm wechat 756466847 để hiểu thêm

Product Describtion

Thank you for visiting us, Best customization service will provide to you. PCB soldering robot desktop portable machine for multiple solder use.

Automatic feeding tin wire high speed iron rotatable steady working select spot soldering drag soldering desktop soldering robot

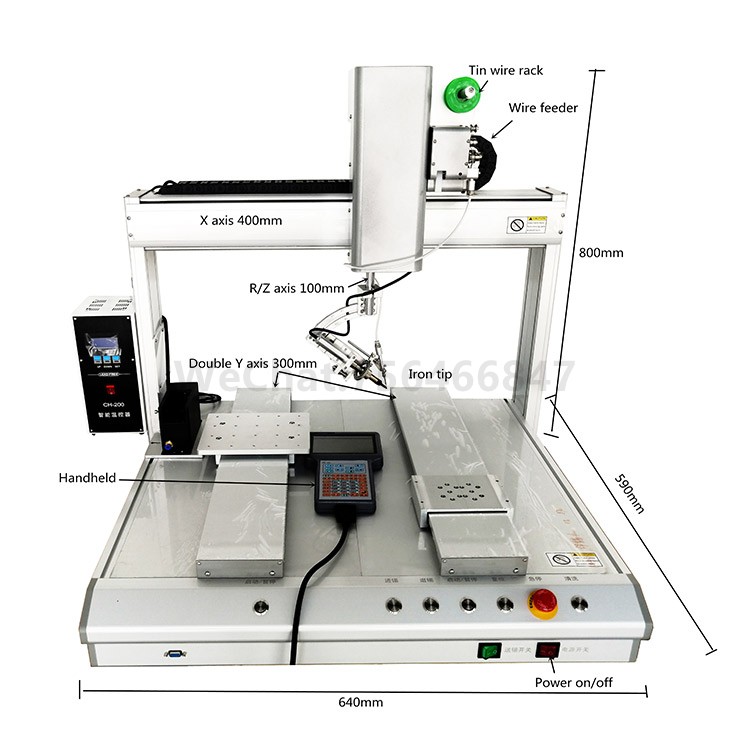

Aluminum alloy soldering robot
Model		H331	H331R	H431	H431R	H4331R	H5331R
Axis range	X	300mm	300mm	400mm	400mm	400mm	500mm
	Y-1	300mm	300mm	300mm	300mm	300mm	300mm
	Y-2					300mm	300mm
	Z	100mm	100mm	100mm	100mm	100mm	100mm
	R		360°		360°	360°	360°
Product dimension (mm)	L	640	640	640	640	740	840
	W	590	590	590	590	590	590
	H	800	800	800	800	800	800
Power source	stepper moter
Motor power	350W
Prrecision	±0.05mm
Control system	Four-axis control system
Heating power	150W
Temperature range	50-500 degrees
Tin feeder	ratchet feeder
Cleaning	Air blowing/brush
File storage	Hand lever 256Mb 5000 points precessing file≈3Mb
Standard power	220/110V 50Hz (Please specify)
Body weight(kg)		35	35	45	45	55	60

Main components of soldering robot
Component name	Brand
Stepper motor	Japan Shinano stepper motor
Linear guides	Taiwan Uppersilver guide
Control system	Shenzhen constant control
Power supply	Meanwell
Photoelectric switch	Japan Omron
Thermostat	Japan Omron
Heater	Germany WELLER
Features
Flexible and diverse soldering method,with spot welding,drag welding
The robot can store 99 operating program,it mean the robot can working for 99 different products
The welding point track is visible,which is convenient for the operator to understand the progress of the solder and facilitate the debugging of the engineering staff.

Features:

1, Flexible and diverse soldering methods, with spot welding, drag welding (pull welding) and other functions.

2. The mechanical arms of the equipment are all aluminum profiles, which are not deformed, rusted and stable.

3, Device writing work program can be point-to-point, block-to-block copy, shorten the programming time.

4, The device has an automatic cleaning function, to a certain extent stabilize the quality of solder processing and extend the life of the soldering iron tip.

5. Multi-axis linkage manipulators, all adopt precision stepping motor drive and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

6.This machine is double head and single working place,we accept the double head and double working place and so on.

Product Application

Applications: Suitable for automotive electronics, digital, electronic, electro-acoustic, LCD, circuit board and other production industries, connectors, RJ / network transformers, cable, FPCB soldering, COF soldering, computer motherboards, CABLE, speakers and motors Wait for high quality welding.

The automatic soldering machine is mainly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering. It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB welding wire, charger plug welding, connector soldering, DC terminal tinning, LED light strip connection and other fields. Automatic soldering robots replace manual welding to improve work efficiency and improve welding quality.

Desktop automatic 4 axis dip soldering robot PCB solder machines automatic soldering machine
