ANALOG ULTRASONIC PLASTIC WELDING MACHINE

The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic welding with the proper time setting and pressure is the fastest most reliable method for thermoplastic parts welding.

* Eliminate use of consumable material

* Produce airtight and watertight seams

* Increase production time

Main Features

1. Double heads ultrasonic welding machine is designed for welding oversize thermoplastic parts.

2. The distance between two heads is adjustable for flexible manufacturing.

3. Optional Automatic Film Feeder to protect the work piee surface being damaged by the ultrasonic vibration.

4. PLC/HMI easy operation touch screen , English Interface.

5. Analog Ultrasonic Welding Machine, manually tuning.

6. Welding by time, Delay time, Weld Time and Hold Time.

7. Separate generator design, more convenient.

8. Precise imported pneumatic parts.

9. High quality transducer and booster.

10. Self-protection: Over-Current, Frequency Deviation, Over-Temperature.

Model No	9W-1526-Two Heads
Ultrasonic Power	2600 W
Frequency	15 KHz
Power Supply	AC 110/220V, 50/60Hz
Delay Time	0.01-9.99 S
WeldTime	0.01-9.99 S
Hold Time	0.01-9.99 S
Driven Mode	Pneumatic
Stroke	75 MM
Working Pressure	0.4-0.7 MPa
Packing Dimension	1400*820*19500 MM
Gross Weight	420KGS

Ultrasonic Horn/Fixture, welding tools design service available.



The machine can be Customized to automated as customer's request



Ultrasonic plastic welding machine is widely used in automotive industry, electronic industry, medical industry, household appliances, woven apparel, office supplies, packaging industry, toy industry, and so on.

Automotive  industry: plastic body parts, car doors, automotive dashboard, lights, mirrors, sun    visor, interior parts, filters, reflective material, reflective spike, bumper, cable, plastic filter for motorcycle , Radiator, brake fluid tank, oil cups, water tanks, fuel tank, air hose, exhaust purifiers, the tray plate, and so on.

Plastic Electronics: prepaid water meters, communications equipment, cordless phones, mobile phone accessories, cell phone case, battery case, charger, maintenance valve regulated lead-acid batteries, 3-inch floppy disk, U disk, SD card, CF card, USB connection, Bluetooth devices, and so on.

Stationery: folder, album, folding boxes, PP hollow board, pen loops, ink cartridges, toner cartridges, and so on.

Medical and Daily products: watches, kitchen utensils, oral liquid bottle caps, drip caps, mobile     phone accessories, golden soft brush, and daily necessities, handle, security caps, cosmetics bottle, coffee pot, washing machines, air dehumidifiers, Electric irons, electric kettles, vacuum cleaners, speakers, cover and metal face grille and other civil engineering and so on.

Health products: children's products, air mattresses, clothes hangers, gardening supplies, kitchenware sanitary ware, shower, shower head, and so on.

product details

MACHINE Parts

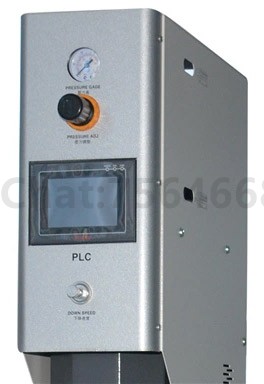

Name: PLC touch screen;
PLC/HMI touch screen - quick, easy parameter input and adjustment.

MACHINE DETIALS
* Equipped with four horizontal level adjusting screws, fast horn changeover for different applications.
* Height is adjustable to match different size horn;



MACHINE PARTS
Equipped with Amplitude Reader
The operation can read the meter to know machine welding setting, so we can set a suitable welding power and welding time to weld a good result.



MACHINE PARTS

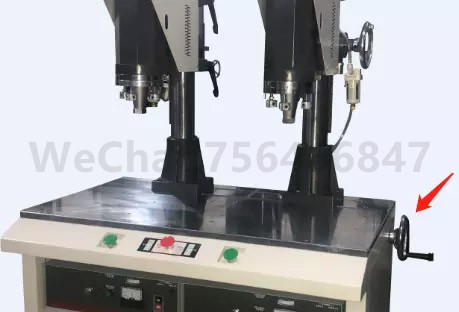

Flexible manufacturing: The distance between the two ultrasonic welding head is adjustable to match different size welding molds.

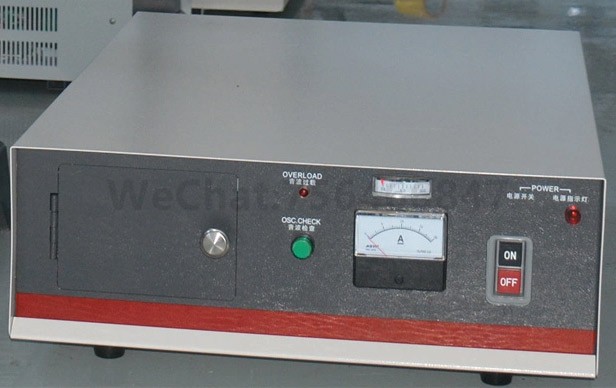

Ultrasonic Generator

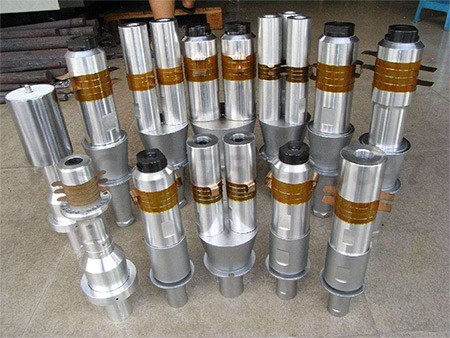

Name: Transducer
