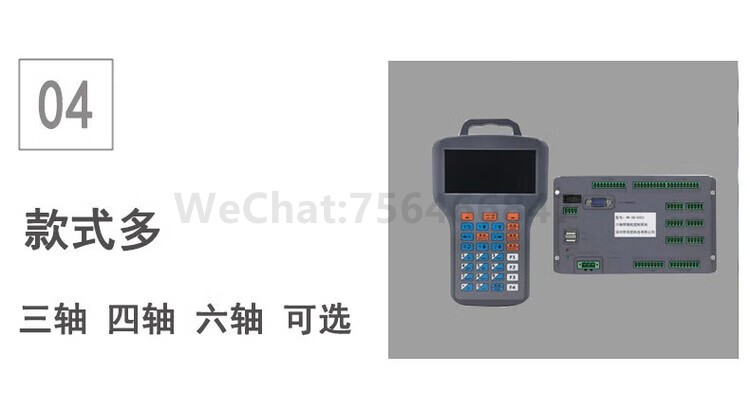

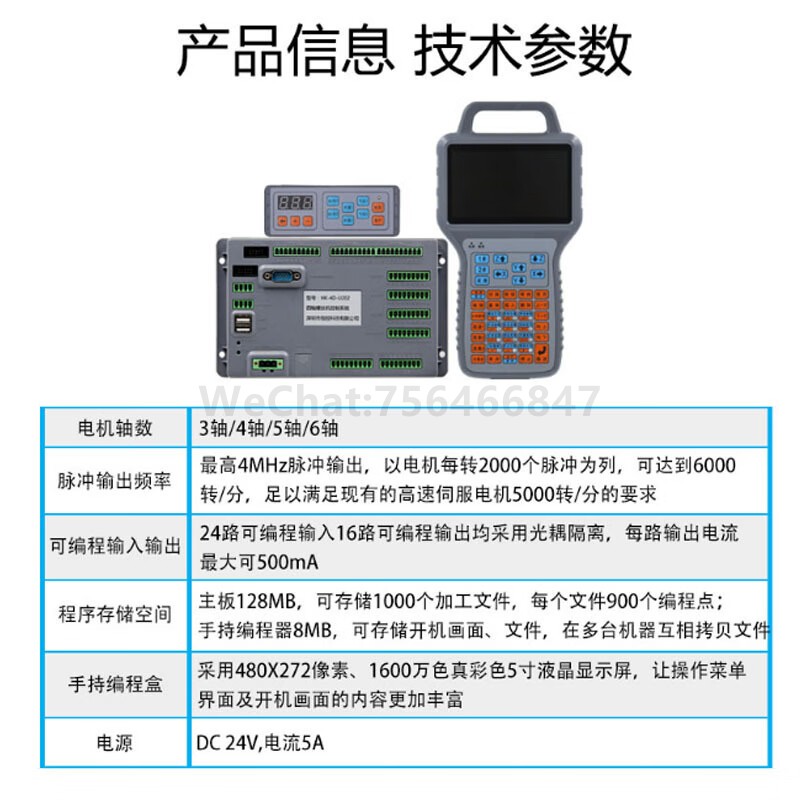

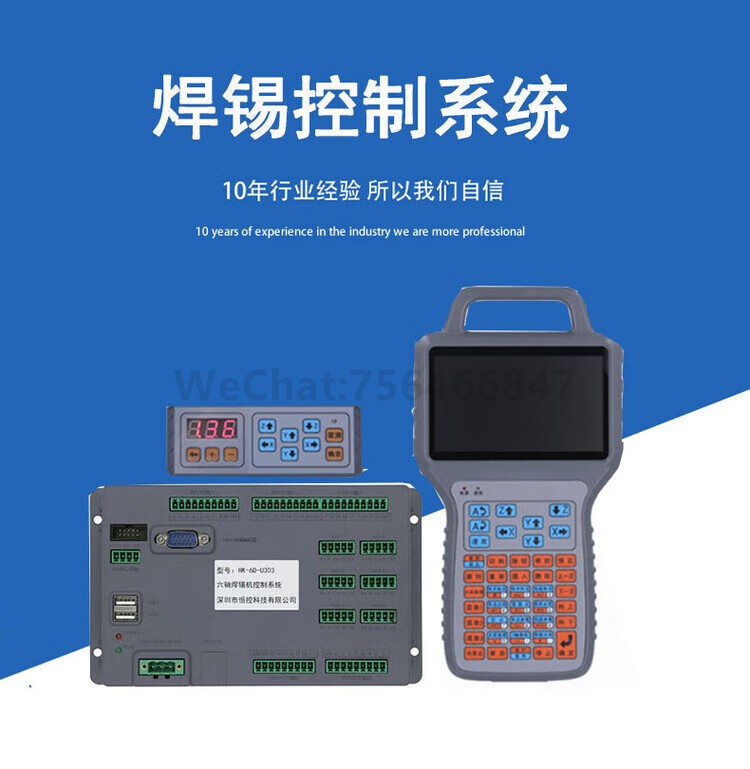

Number of motor axes: 3/4/5/6 axes.
Pulse output frequency: up to 4MHz pulse output, with 2000 pulses per motor revolution, it can reach 6000 rpm, which is enough to meet the existing high-speed servo motor 5000 rpm requirements.
Programmable input and output: 24 programmable inputs and 16 programmable outputs are all optically isolated, and the maximum output current of each channel can be 500mA.
Program storage space: 128MB on the main board, which can store 1000 processing files, 900 programming points per file; 8MB on the handheld programmer, which can store startup screens and files, and copy files between multiple machines.

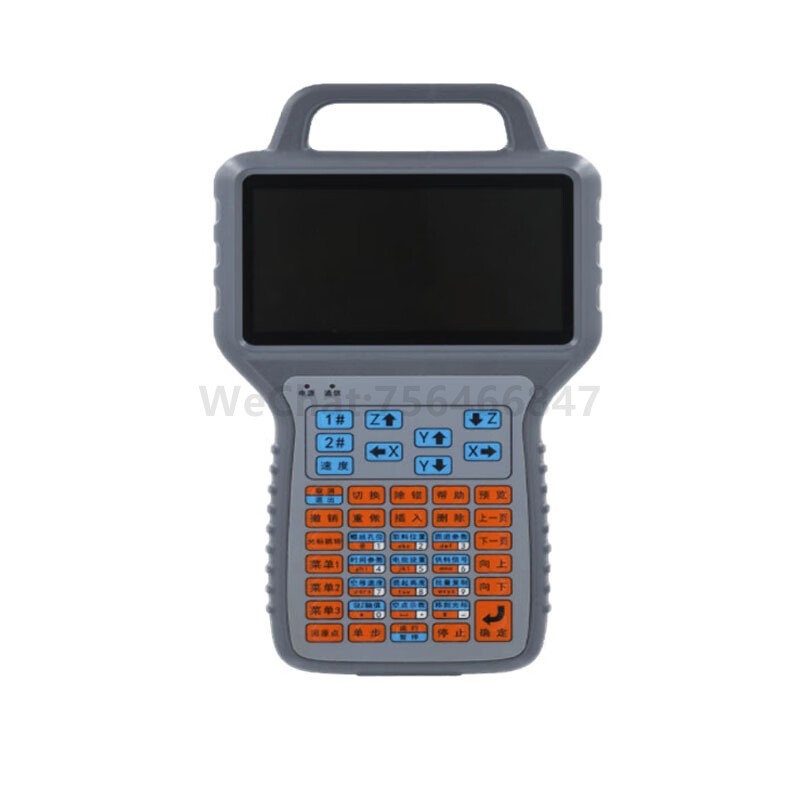

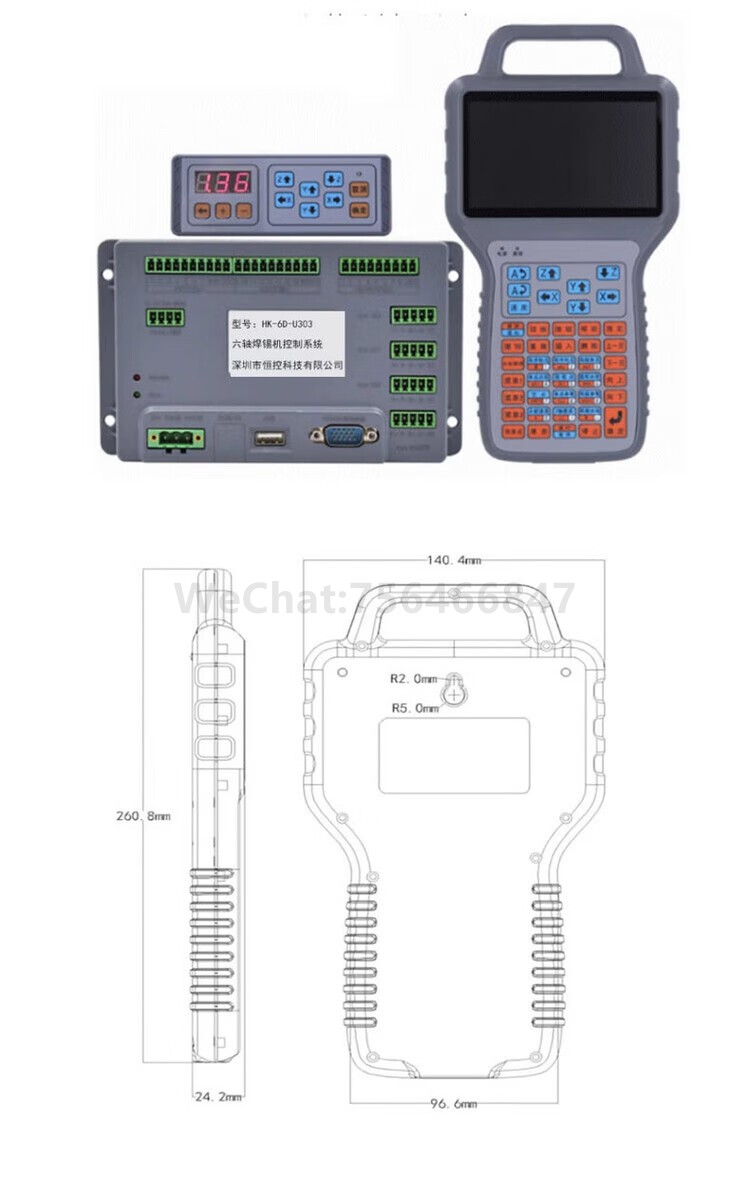

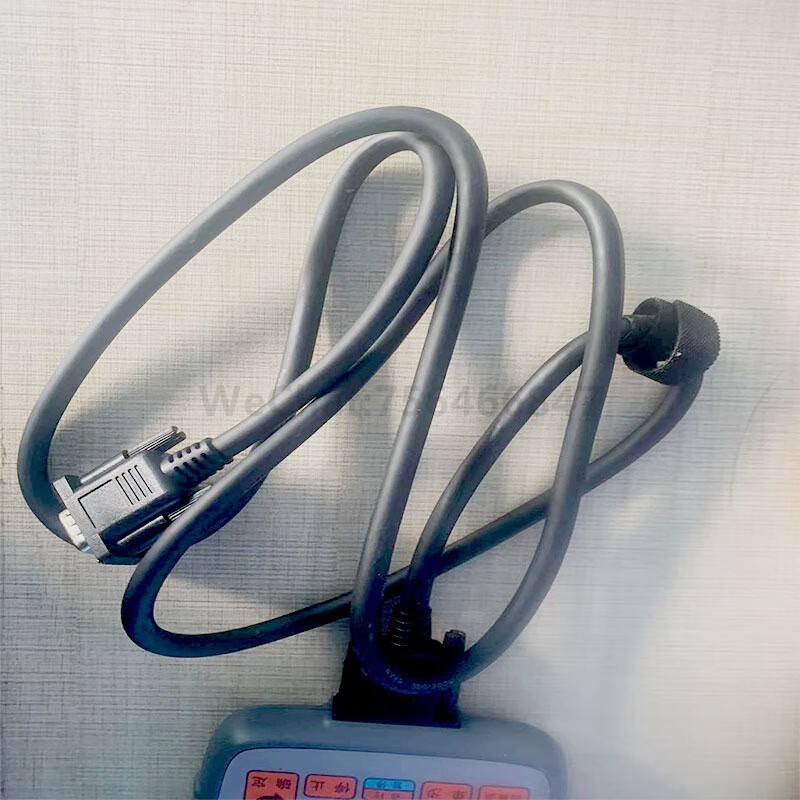

Handheld programming box: It uses a 5-inch LCD display with 480X272 pixels and 16 million colors true color, which makes the operation menu interface and the startup screen more abundant.
Power supply: DC24V, current 5A.
