Three-dimensional motion platform module

  • Floor-standing three-axis motion platform

Floor-standing three-axis motion platform

  • The 3D motion platform can be used to build and manufacture automatic screw locking machines, glue dispensing machines, soldering machines, inkjet printers, material array trays, engraving, coding, toy sorting, plasma cleaning and other industries.

  • Add WeChat 756466847 to learn more

Applicable industries:

The floor-standing three-axis platform can be used to build and manufacture automatic screw locking machines, glue dispensing machines, soldering machines, inkjet printers, material array trays, engraving, coding, toy sorting, plasma cleaning and other industries.

Product advantages:

The main unit of the floor-standing three-axis platform adopts a high-titanium aluminum structure with high structural strength to achieve high-speed and stable operation. The surface is specially treated with non-stick glue for easy cleaning. The metal button switch is highly sensitive and durable. The bottom plate of the machine is thickened and insulated, and four adaptive large discs are supported.

Advantages:

1. The DIY mode can be freely matched, and can be used for screw locking, glue dispensing, soldering, engraving, grinding, and deburring platform construction.

2. The molded aluminum alloy three-axis (multi-axis) machine structure design is reasonable and practical.

3. The operation and installation are simple and convenient, and the operation is user-friendly.

4. The path program file can be uploaded/downloaded to facilitate data management and storage;

5. Intelligent teaching mode/PC mode/visual mode can be matched at will.

6. It has the functions of drawing points, lines, surfaces, arcs, circles, and irregular curves.

7. Italian synchronous belts, Taiwan screw guide rails, and Japanese imported motors are of stable, reliable, and durable quality.

Machine parameters:

Three-axis screw dispensing soldering machine inkjet motion platform parameters

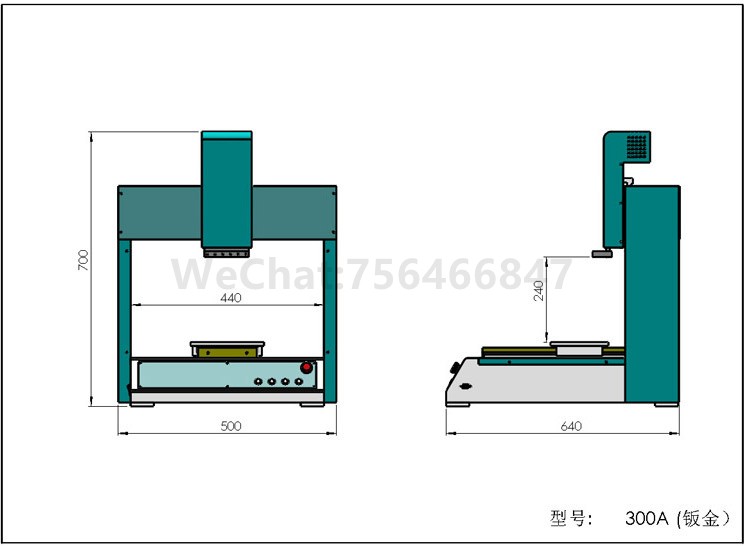

300A Sheet metal 3D machine dimensions diagram

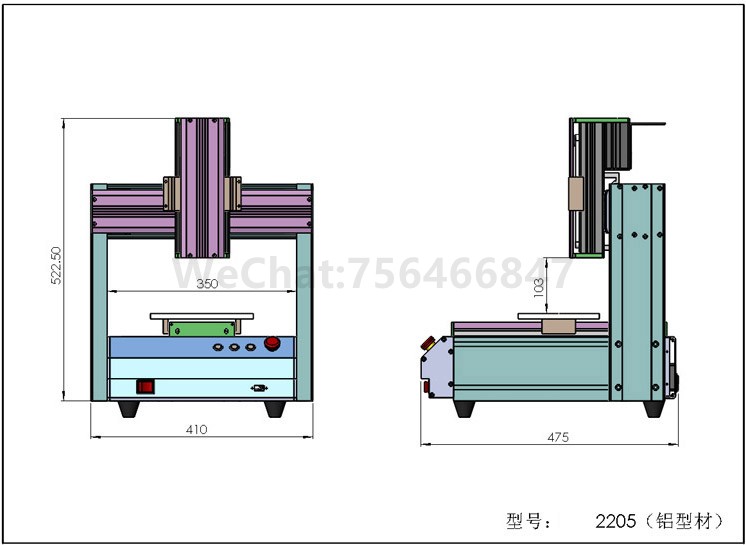

2205 Sheet metal 3D machine dimensions diagram

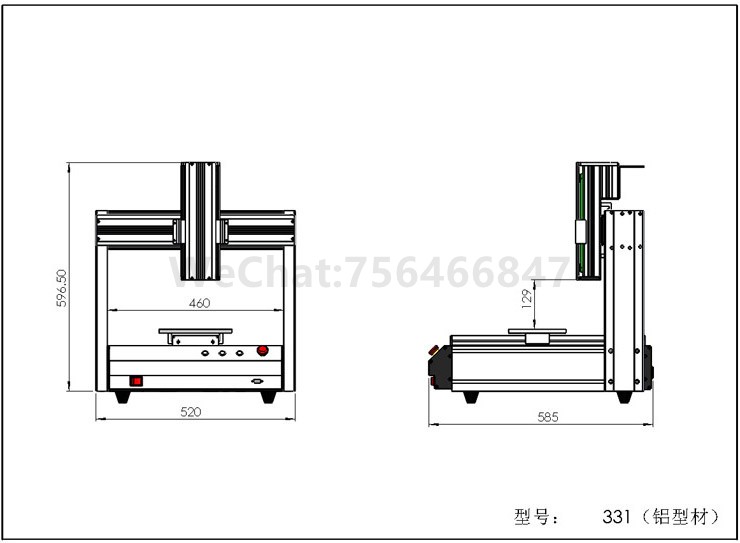

331 Sheet metal 3D machine dimensions diagram

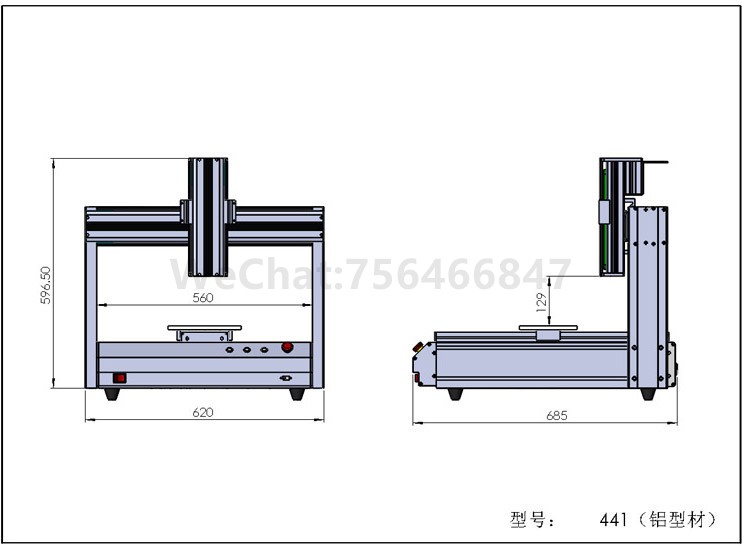

441 Sheet metal 3D machine dimensions diagram

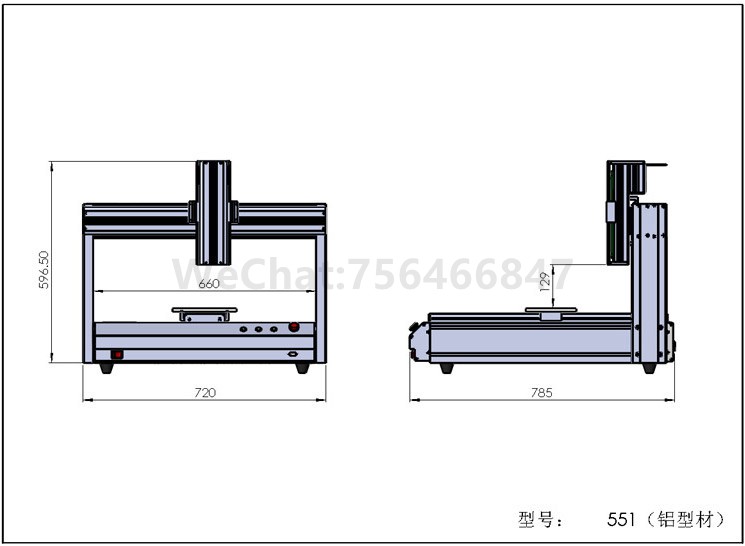

551 Sheet metal 3D machine dimensions diagram
