Brief introduction:

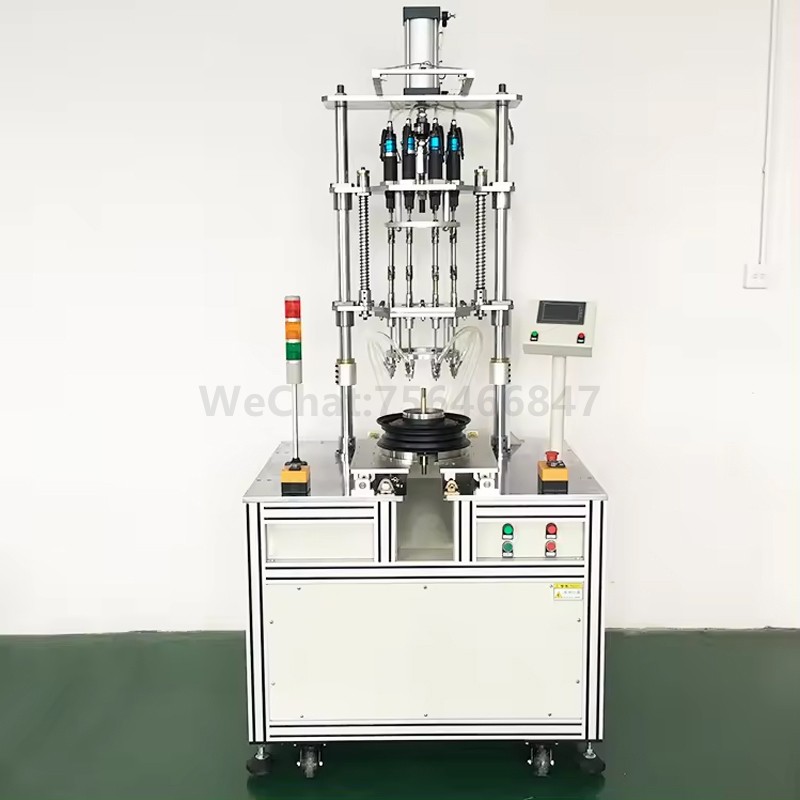

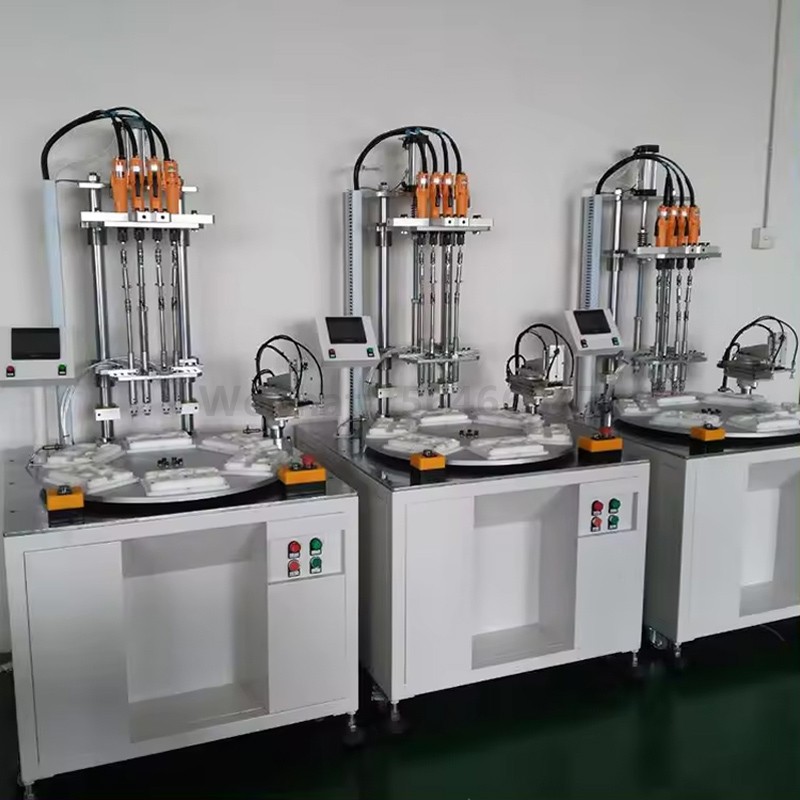

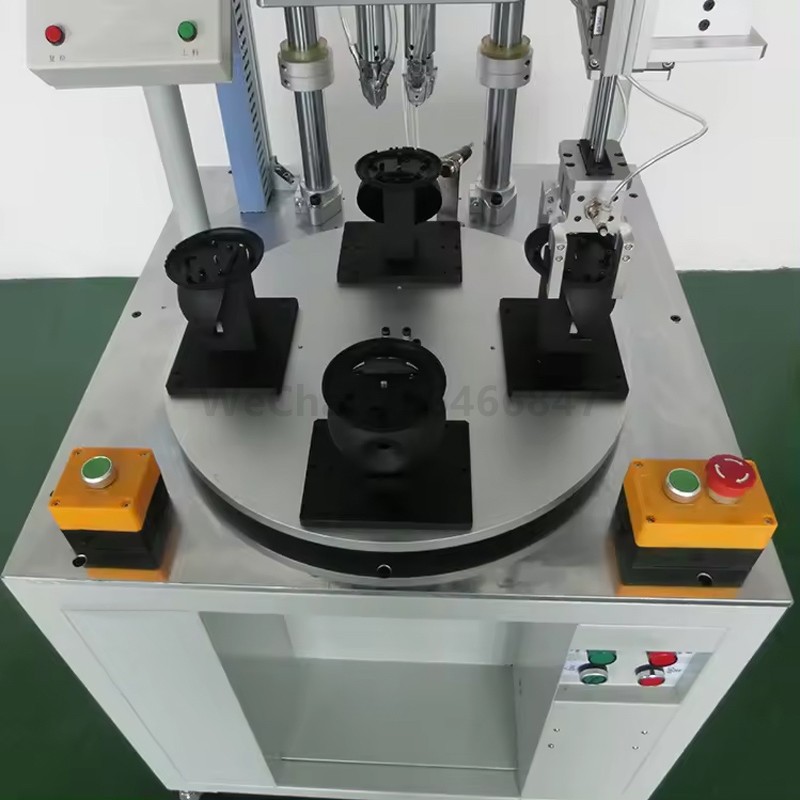

Compared with the multi-axis fixed screw machine, the multi-axis turntable type automatic screw machine realizes the cycle of the fixture cycle and step-by-step flow operation through the multi-station turntable. The processes of product placement, assembly, testing, screw locking, and unloading are performed simultaneously. The efficiency is greatly improved. The electric screwdriver transmits the torque to lock the screw through the universal joint, which is convenient for product replacement and adjustment. Workers only need to put the product into the fixture, the machine will automatically lock, and there will be an alarm for defective products. According to the customer's product situation, the product fixture can generally be equipped with 4 stations and 8 stations.
Advantage:
1. Locking multiple screws at the same time can replace multiple workers; the number of axes can be customized according to customer requirements.
2. Manually pick and place the product, the machine automatically locks the screws and can judge whether the screws are properly locked, which is convenient for distinguishing defective products.

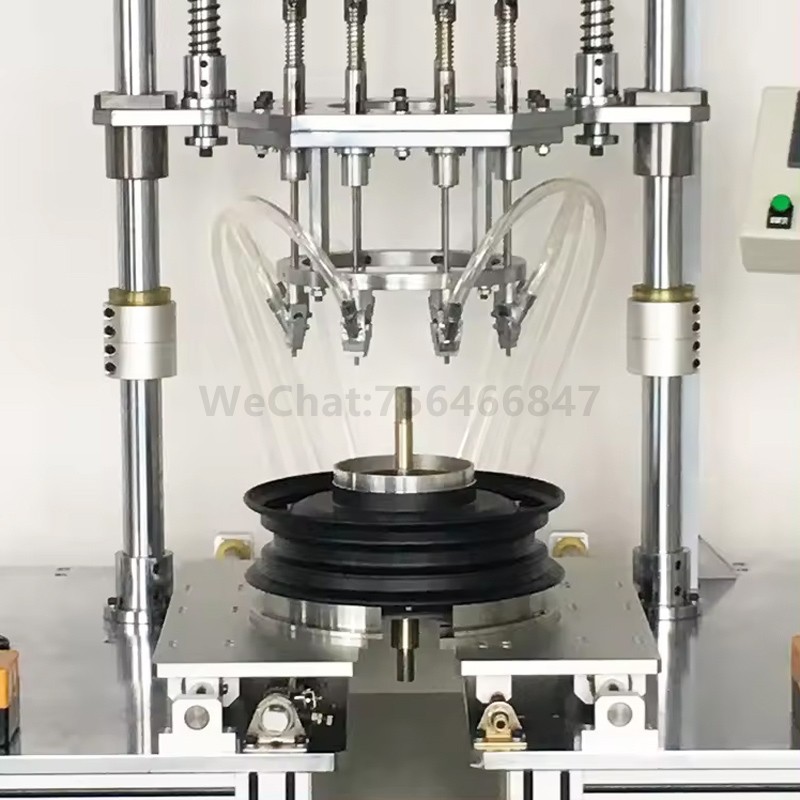

3. The electric screwdriver transmits the torsion lock screw through the universal drive shaft, the screw hole position is
convenient to adjust, and the product variety is easy to change.
4. Good versatility. The locking mechanism can be adjusted to adapt to the slight changes that occur in different batches of the production device.
5. Use specific feeding methods to provide more professional feeding methods for different product types.
6. It has a screw feeding detection device to ensure that the screws are in place each time before locking, and to ensure that the locked product is zero NG.
7. The main parts of the machine adopt precision parts to ensure that the equipment is fast and accurate.
8. The machine is simple and practical, and the employees quickly master the operation and debugging.
Machine structure: | Gross weight of machine: | About 100KG |
| Dimensions: | Height 1900*length 800*width 600 |
| power supply: | AC 230V 50HZ |
| power: | 0.3KW (calculated based on four screws) |
| Gas consumption: | 15m3/hour (calculated by four axis) |
| frame: | Steel countertop, aluminum alloy frame |
Control description: | Host program control | PLC control |
| Man-machine interface | touch screen |
| Machine start | Manual and automatic two modes |
| alarm | The warning light flashes and the buzzer whistle |
connect: | Universal Joint & Coupling Components | According to requirements |
Screw feeder: | Automatic feeder | Special feeder for automatic machine |
| The number of automatic feeder | Set according to the number of equipment axis |
screwdriver: | Kellett speed electric screwdriver | Can be selected according to customer requirements |
Scope: | Applicable product size: | Customized according to customer's products |
| Horizontal adjustment range: | 25mm-40mm adjustment |
| Vertical adjustment range: | 15mm adjustment |
| Screw locking depth: | 25mm, if it is deeper, it needs to be customized; |
| Minimum screw hole distance: | 18mm, unlimited maximum hole distance |
Detection items: | Screw sliding detection | have |
| Screw leaking lock detection | have |
| Screw leaking sending detection | have |
| Handling of defective products | Warning light and buzzer prompt |
