Dispenser

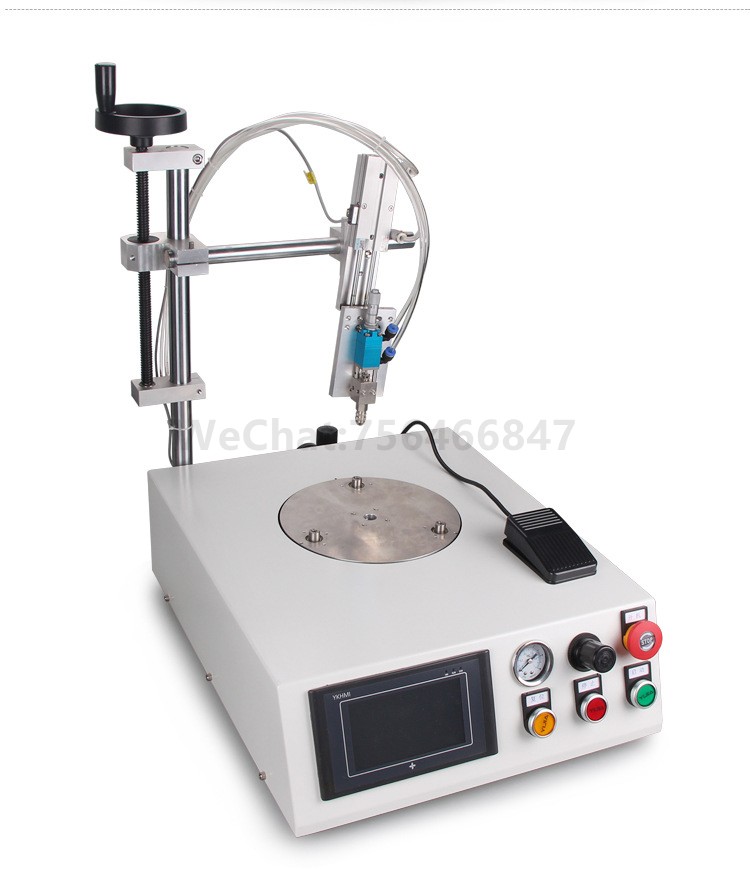

Fully automatic desktop three stations led bulb glue dispensing machine for lamp

Packaging & Delivery
Selling Units:Single item
Single package size:70X80X90 cm
Single gross weight:140kg
Package Type:plywood carton
Lead Time :
Quantity(Sets) 1 - 1 2 - 10 >10
Est. Time(days) 7 15 To be negotiated
Add WeChat 756466847 to learn more

Products Description

1. It is easy to operate and use. It can adjust the glue flow rate and moving speed according to the size of the product and the fluidity of the glue, adjust the dispensing angle, and prevent the wire drawing rotation angle;

2. The product fixing plate is convenient and quick to replace and precise in positioning, and the operation is efficient and
stable. Take bulb lamp dispensing as an example: a machine is equivalent to the work efficiency of 5 to 10 people, thus
providing benefits and cost savings for enterprises

3. The machine operation standard is stable, glue out is uniform and
smooth, which ensures the consistency of the product, thus greatly improving the market competitiveness of the enterprise and the product

4; Fully automatic quantitative positioning point tape suction function, after finished dispensing the first product, it will not
flow out during the process of turning to the next product, which not only saves glue, but also keeps the machine clean and tidy

5. The machine has good versatility, not only can be used for all bulb lamps, spotlights, lamps and other craft lamp products, but also suitable for all round dispensing craft products

model	JT-6003 round glue dispensing machine
Work station	Three worktable
Valve	Single liquid glue dispensing valve（dispensing valve can change according to requirement）
Programmatically	Industrial PLC touch screen
Repeatability	±0.05mm
Operating mode	Fully automatic /pedal control glue
Drive way	Precision stepper motor +gear reducer
Capacity	2 sec/ pieces
Supply pressure	0.4-0.6MPa
Voltage	AC220V/50~60HZ/500W

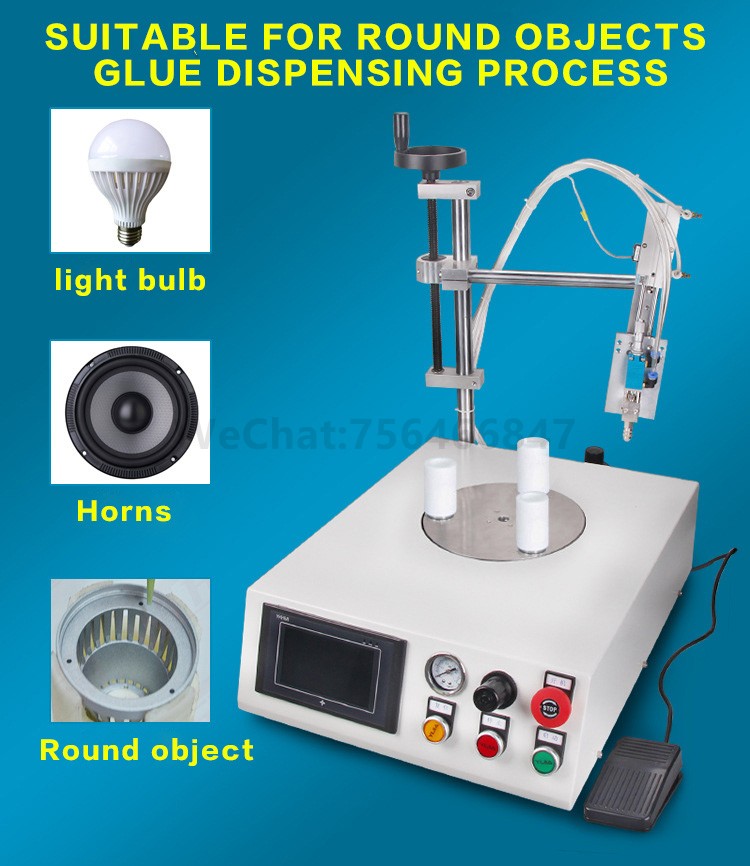

Applicable Products	LED bulbs, wax tail lamps, energy-saving lamps, or other round products
Suitable glue	All kinds of one-component silicone, UV shadowless glue, epoxy resin, etc.
weight	23KG
