Dispenser

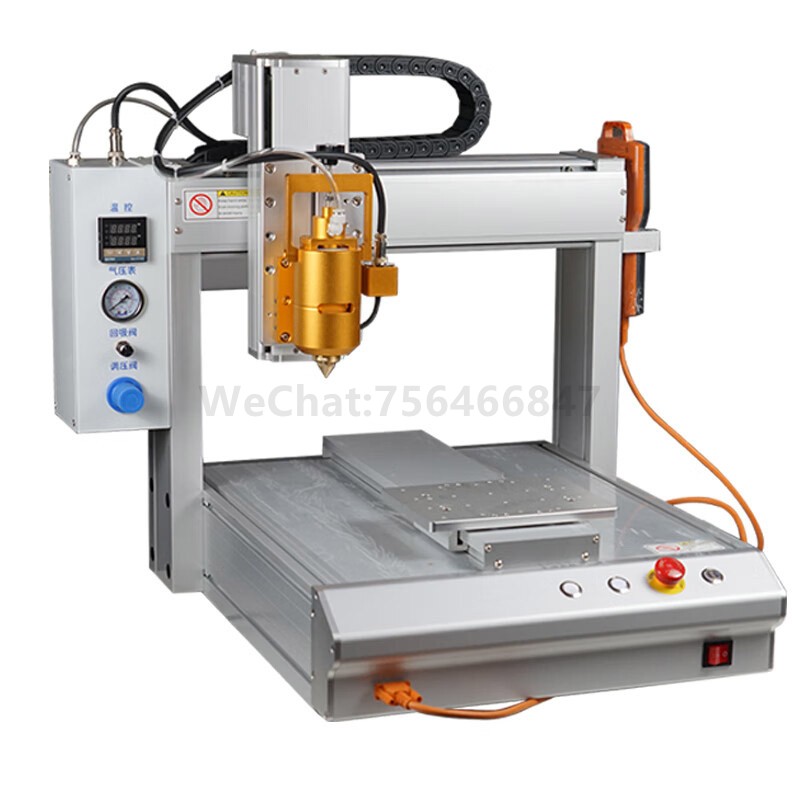

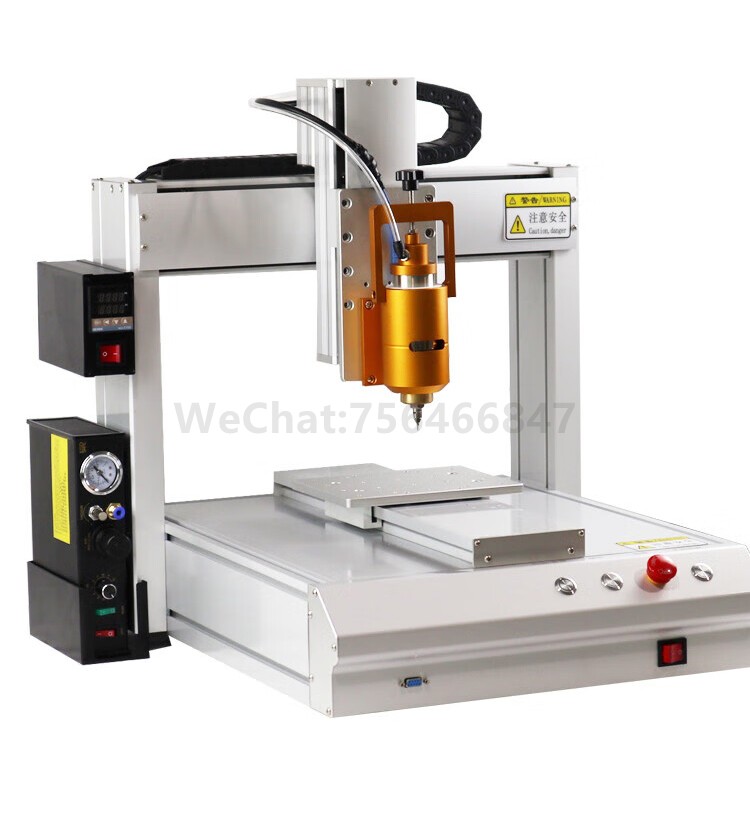

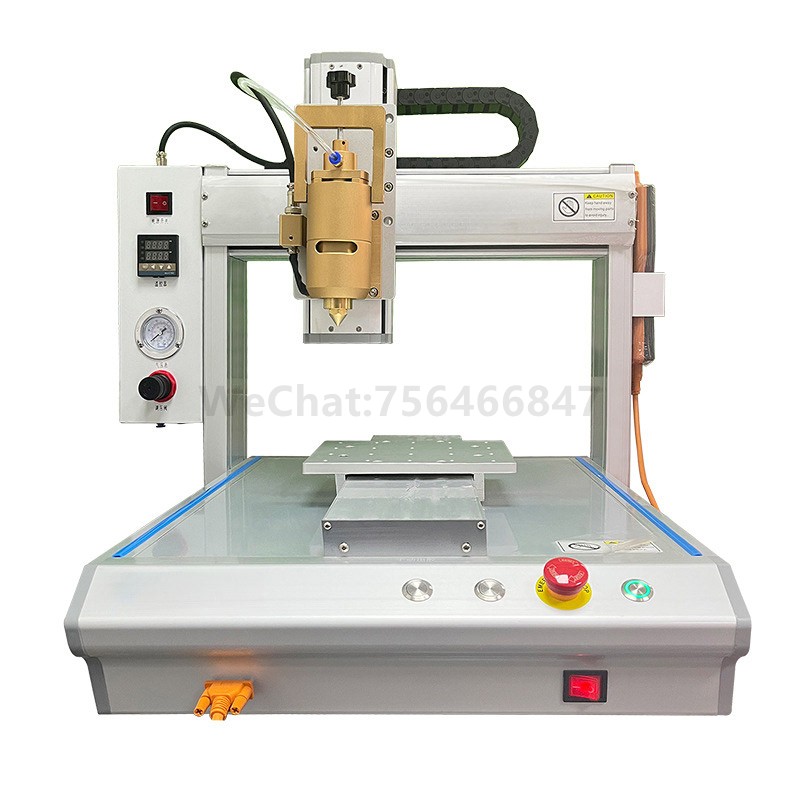

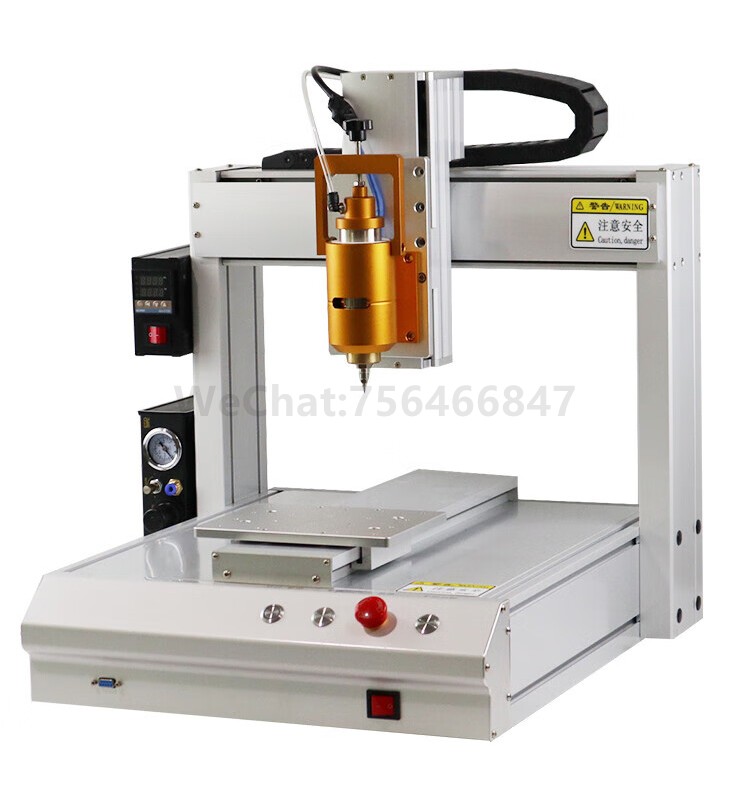

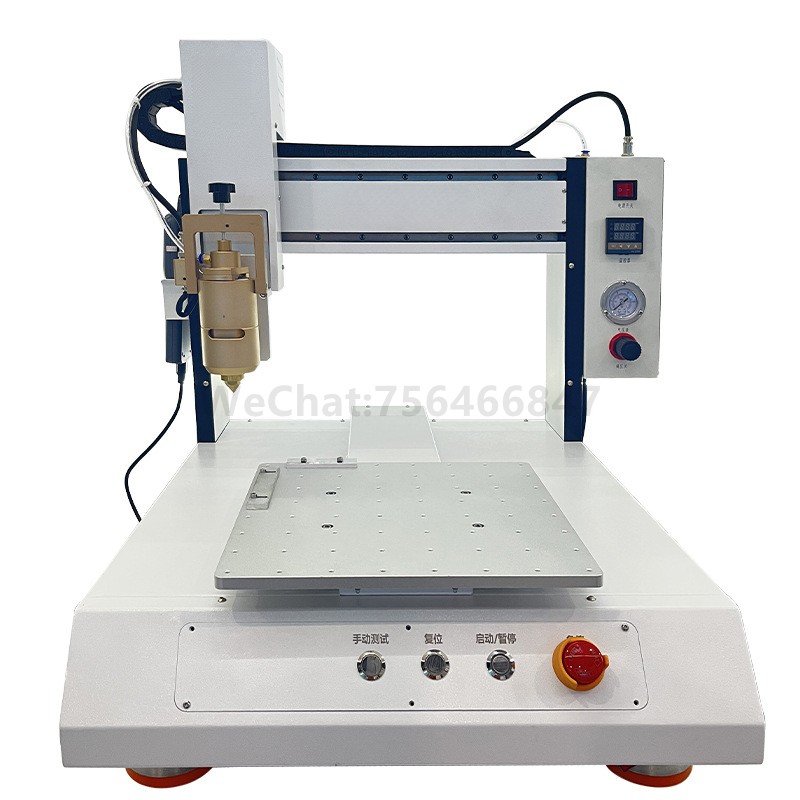

30ML single station hot melt glue dispensing machine

Application scope: Sensors, relays, power adapters, electronic toys, buzzers, electronic components, household appliances, electric vehicle controllers, computer digital products, handicrafts, mobile phone boards, coil products, button products, battery boxes, speaker outer ring adhesive bonding; Speaker packaging and dispensing, semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding adhesive, COB, IC, PDA, LCD sealing adhesive, IC packaging, IC bonding, chassis bonding, optical device processing, hardware component packaging coating, quantitative liquid filling, chip bonding, automotive mechanical component coating, mechanical sealing, etc.
Add WeChat 756466847 to learn more

Products Description

Technical parameters:
Working range X/Y/Z (MM)		300300100
Maximum speed (MM/S)		three hundred
Repetitive round-trip accuracy (MM)		0.02-0.05
Transmission mode		Upper silver guide rail (slider)
operating system		LCD panel/hand-held programmer
Program storage capacity		999 parameter files (65,535 points per file)
operating system		operating system
Motor system		Nihono stepping motor, drive
Sport mode		3-axis point-to-point, continuous straight line, circular arc
Expand IO		4 inputs/4 outputs
Machine size (MM)		540580650
Weight (KG)		48KG
work environment		Humidity: 20-90% ℃, temperature: 0-40 ℃
Main configuration:
name	unit		quantity	remarks
electric machinery	set		3	Nippon Shinano Reisai/Jermykon/Best
drive	set		3	Nippon Shinano/Best/Jermykon
Double guideway	set		3	Bank of Shanghai, Taiwan
Pneumatic glue control	set		1	Yadeke, Taiwan
Timing belt/screw rod	set		2/1	Italy Italy/Taiwan TBI
a sensor	piece		1	Omron, Japan
Power Supply	piece		1	Mingwei, Taiwan
relay	piece		1	Omron, Japan
Button	piece		3	Redwave
Motion controller	set		1	full-time
Automatic dispenser system	set		1	full-time

Product features:

◎ Chinese hand-held LCD screen operation, convenient programming, easy to learn and understand;

◎ With the function of drawing points, lines, surfaces, arcs, circles, irregular curves and continuous compensation, it can realize any 3D non planar path

◎ Excellent teaching function. Support advanced functions such as array, graphical browsing, 3D ellipse, common graphic library insertion, group editing, etc

◎ Large capacity 2G high-speed MiniSD file memory, which can store 999 dispensing process files

◎ Glue quantity, thickness, gluing speed, dispensing time and stopping time can be set by parameters

◎ Cooperate with special dispensing controller to ensure stable dispensing, clean glue breaking and no glue leakage

◎ With automatic anti curing function, it can effectively prevent the needle from being blocked by glue curing, and it has anti wire drawing function

◎ With glue preheating function, it can greatly shorten the time for changing glue

◎ Use Omron temperature control meter to control temperature, temperature control: ± 1 ℃

◎ Suitable for Loctite 3542, Fule 9646, 3M 2665, ITW 94167 and other brands of hot melt adhesive

◎ Adhesion of mobile phone shell and notebook shell

FAQ

1.How to guarantee the quality of your products?

1) Strict detection during production.

2) Before shipment, the products shall be strictly checked, and after debugging, the products shall be packaged and shipped to ensure that there are no problems.

2. What is your terms of payment？

T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

3. May I buy samples from you?

Yes! You are welcome to place sample order to test our superior quality and service. Sample's price is the same as bulk's price. Or you can send us samples of your product and we test it on machine. Video for you to make samples.

4. How to operate the equipment?

We have made video for you to show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication.

5. Do you have any After-Sales service?

Yes! The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine, ensuring you can operate the machine easily.

6. Are you just trading company or factory?

We are professional manufacturer for automation machine since 2017. Our factory is located in Shenzhen City,Guangdong Province. Welcome you to visit our factory.
