Packaging & Delivery
Selling Units:Single item
Single package size:60X70X70 cm
Single gross weight:55kg
Package Type:wooden box
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Model | D331 | |||
Number of axes | Three axis | |||
Effective travel | X axis | Y axis | Z axis | |
300MM | 300MM | 100MM | ||
Transmission mode | Double guide synchronous belt | |||
Power source | Stepper motor | |||
Max speed | 500mm/sec | |||
Repeat accuracy | ±0.05mm | |||
Maximum load | X/Y/Z 5kg/5kg/2kg | |||

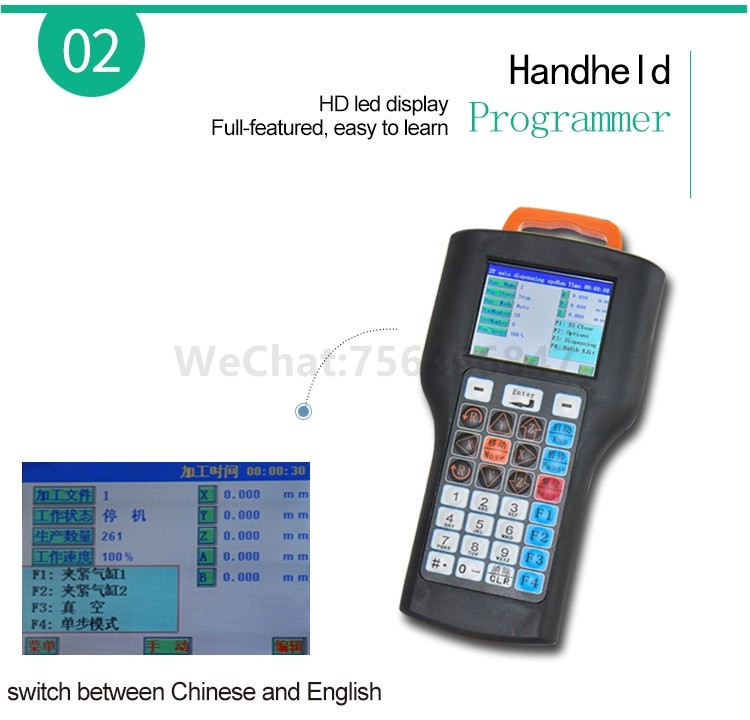

Control System | Hand-held three-axis control system | |||
File storage space | 400 group of processing files, up to 9999 points in a single file. | |||
Power | AC110-250V 50-60HZ 350W | |||

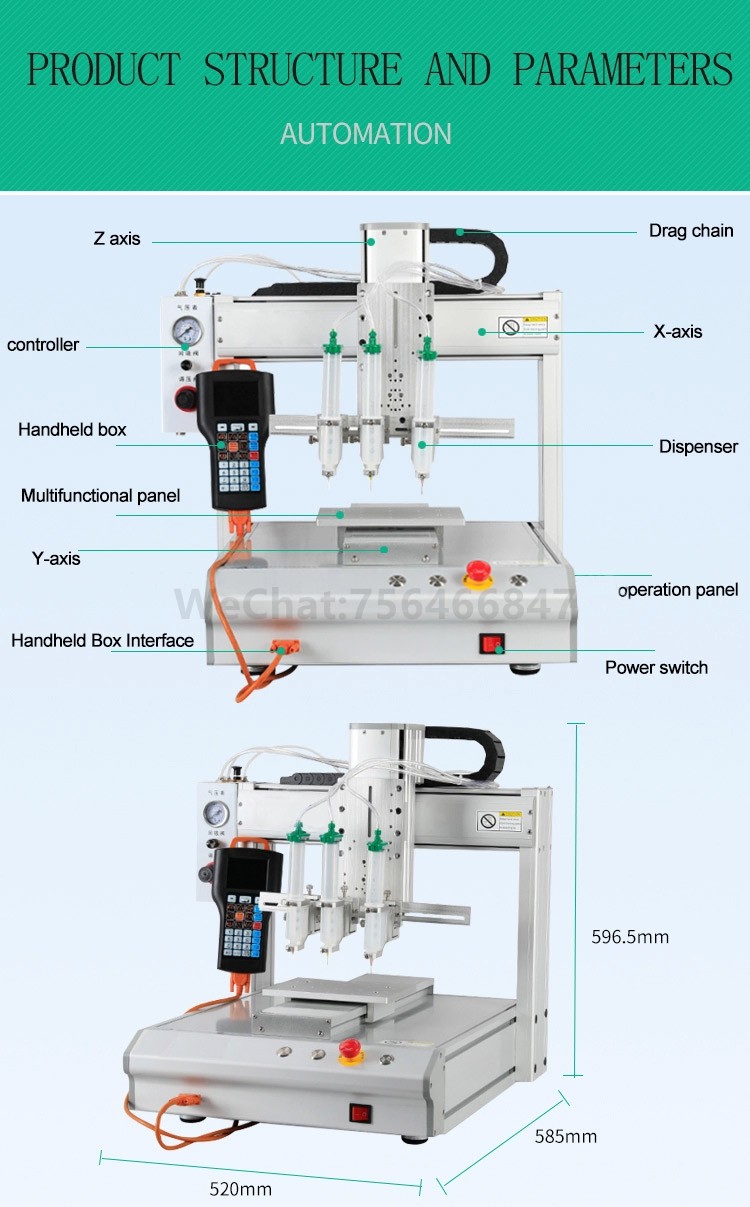

Size | X axis | Y axis | Z axis | |
520MM | 585MM | 596.5MM | ||
Weight | 44KG | |||
Ming Wei (China)
Product name | Brand |
Stepper motor | Shinano (Japan) |
Drive | YAKO (China) |
Linear Guides | Shangyin (Taiwan) X / Y axis dual rail, Z axis single rail |
Three-axis control system | Quanzhi (China) |
Power supply |
