Illustration to ultrasonic plastic welding machine

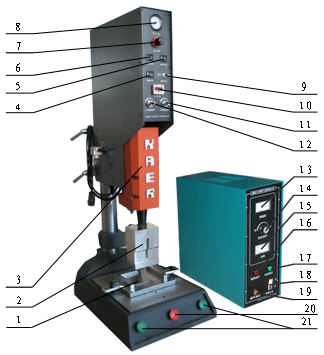

ultrasonic plastic welding machine(Front)

1、Tooling

2、Acoustic horn

3、Shield of the transducer

4、weld time

5、Dwell time

6、Delay time

7、Pressure adjusting

8、Pressure gauge

9、Open switch

10、Counter

11、Fall speed regulating

12、Rising speed regulating

13、Frequency deviation degree

14、Frequency control

15、Load indication

16、Frequency deviation indication

17、Power supply indication

18、Power switch

19、Ultrasonic testing

20、Emergency stop button

21、Operation button

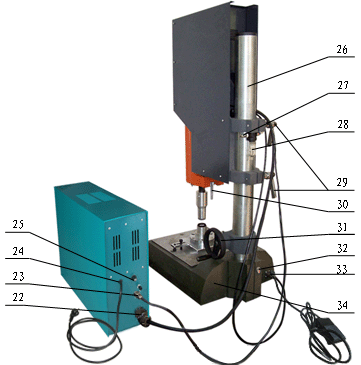

ultrasonic plastic welding machine(Rear)

22、Plug of transducer

23、Plug of logic board

24、Power cord

25、Protector tube

26、Post

27、Interface of air supply

28、Air filter

29、Locking wrench

30、Limit screw

31、Lifting handwheel

32、earthing screw

33、Plug of control wire

34、Base
